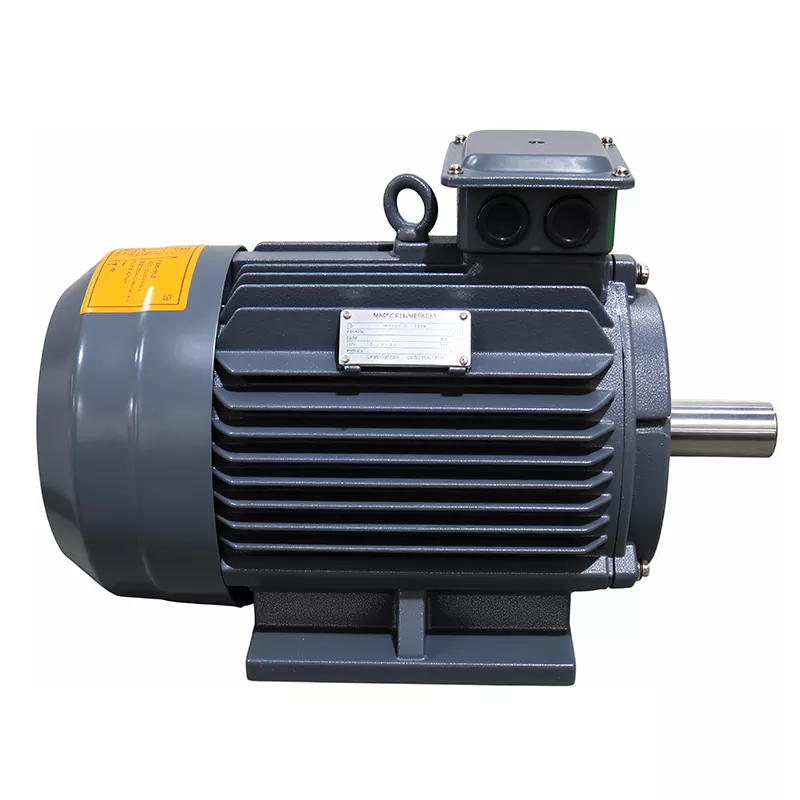

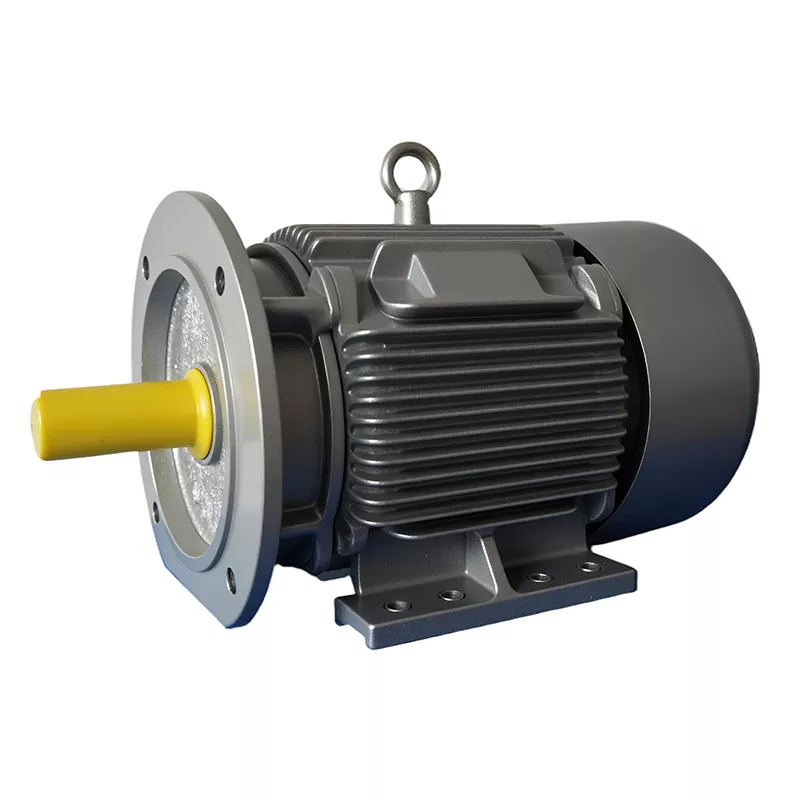

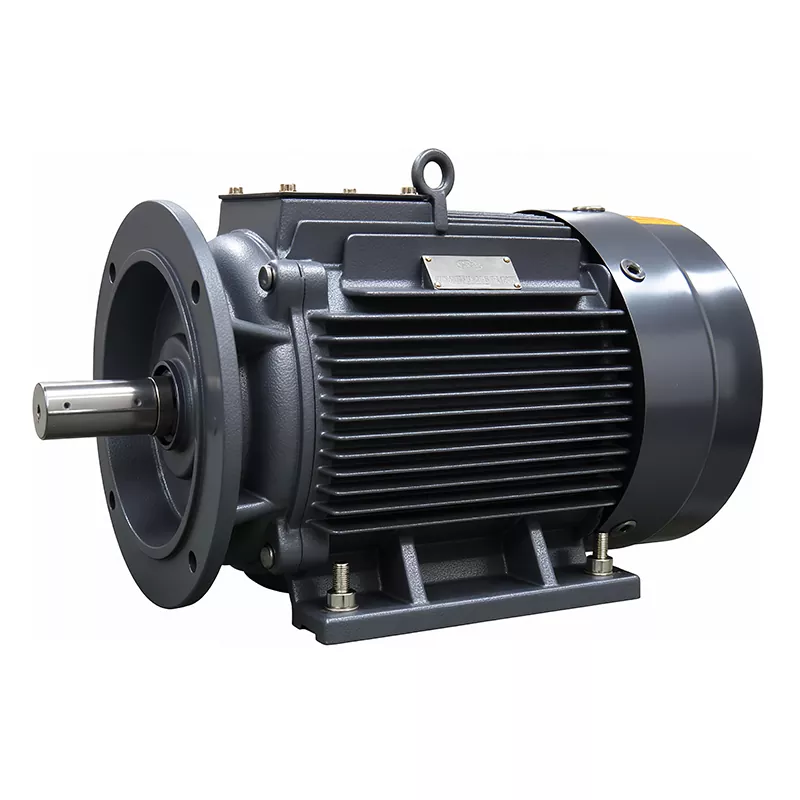

3000 RPM IE5 Non-magnetic Synchronous Motor

Zhejiang Jiafeng Power Technology Co., Ltd.'s 3000 RPM IE5 Non-magnetic Synchronous Motor is designed to meet global demands for higher energy efficiency and environmentally friendly operation. It boasts a speed of up to 3000 RPM and meets the IE5 energy efficiency rating—the highest international standard for motor performance. Our products do not use rare-earth magnets, avoiding supply chain shortages and environmental pollution, making them an excellent choice!

Send Inquiry

Product Description

Traditional permanent magnet synchronous motors (PMSMs) depend on rare earth materials to make their permanent magnets. But the rare earth resources are limited, prices often change, and their environmental impact is a growing concern—all of which have become real headaches for the industry. Jiafeng Power’s 3000 RPM IE5 Non-magnetic Synchronous Motor takes a different approach: it’s magnet-free, so it doesn’t use any rare earth materials at all. This fresh design cuts material costs from the start and reduces supply chain risks.

By focusing on magnetic resistance torque and improving the electromagnetic layout, the motor boosts energy efficiency significantly. It reaches IE5—the top global energy rating—and performs just as well as rare earth permanent magnet motors. What’s more, the size is more than 30% smaller than induction motors with the same power, offering a compact and high-efficiency alternative.

Product Specification

Rated Power	7.5–315 KW
Rated Voltage	380V or customized
Rated Speed	3000 RPM
Protection Level	IP55

Key Feature

Below is the advantage of 3000 RPM IE5 Non-magnetic Synchronous Motor

Non-magnetic Synchronous Technology	Advantage
lE5 high efficiency	Lower energy consumption
No rare earth metals	Low temperature rise
Rotor with no magnetic poles	No axial current
Lower winding and bearing temperature	Longer service life, less vibration
Good controllability	Accurate speed and torque control
Low noise	Better working environment
Same size as lE2	Simple replacement

Technical Advantages of Non-permanent Magnet and Non-magnetic Synchronous Motors

Item	Permanent magnet motor	Induction motor	Permanent Magnet Assisted Non-magnetic synchronous Motor	Non-permanent Magnet and Non-magnetic Synchronous Motor
Efficiency	High	Low	Higher	High
Motor cost	High	Lower	High	Low
Inverter cost	Low	High	Lower	High
Motor system cost	High	Lower	Higher	Low
Motor temperature rise	High	High	Higher	Low
Servo accuracy	Higher	Low	Higher	High
Permanent magnet material	Contain	not Contain	Contain	not Contain
Noise level	High	High	Higher	Low
Axial current	High	High	Higher	Low
Motor volume	Small	Big	Smaller	Smaller
Maintenance	Poor	Better	Poor	Good
Motor life	Short	Longer	Short	Long
Motor life	Short	Longer	Short	Long
Cogging positioning torque	Big	Non	Bigger	Non

Jiafeng Power's 3000 RPM IE5 Non-magnetic Synchronous Motor is a game-changer. It hits the top efficiency mark without using any of those pricey rare-earth magnets. That means you get a rock-solid motor that's not only kinder to the planet but also saves you from supply chain headaches. It's the smart, future-proof choice for tough jobs.

Hot Tags: IE5 Synchronous Motor, 3000 RPM Non-Magnetic Motor, Industrial Synchronous Motor Supplier
