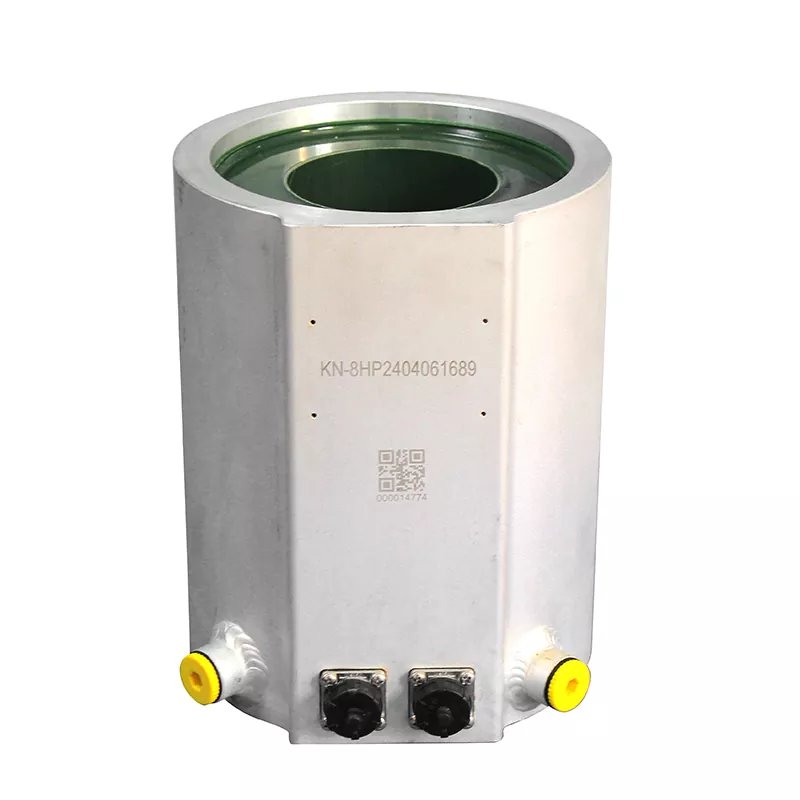

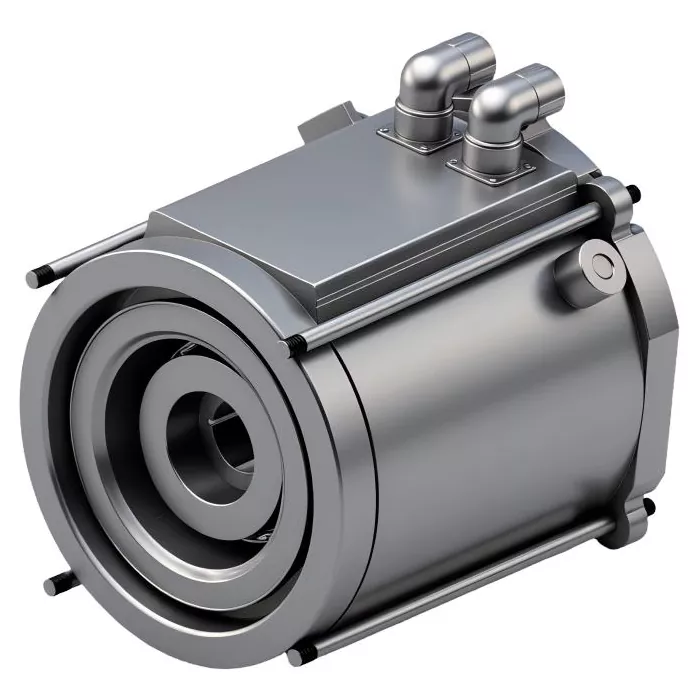

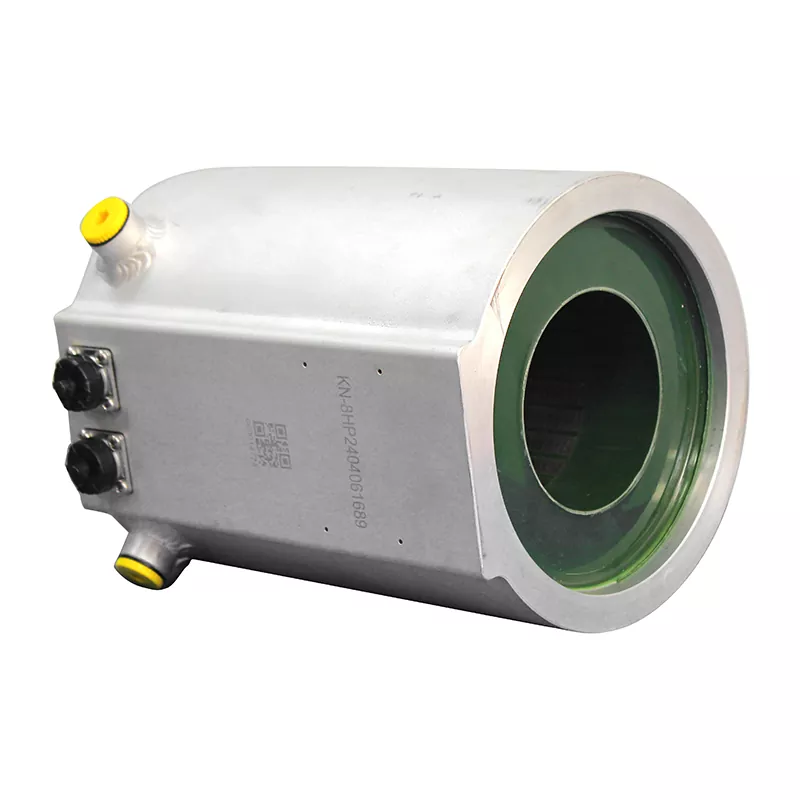

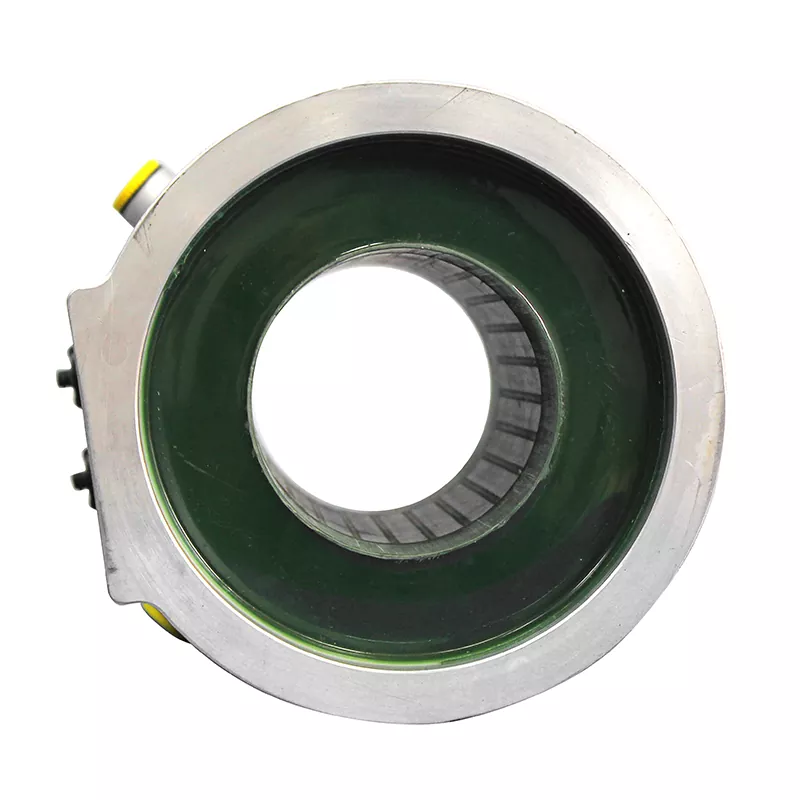

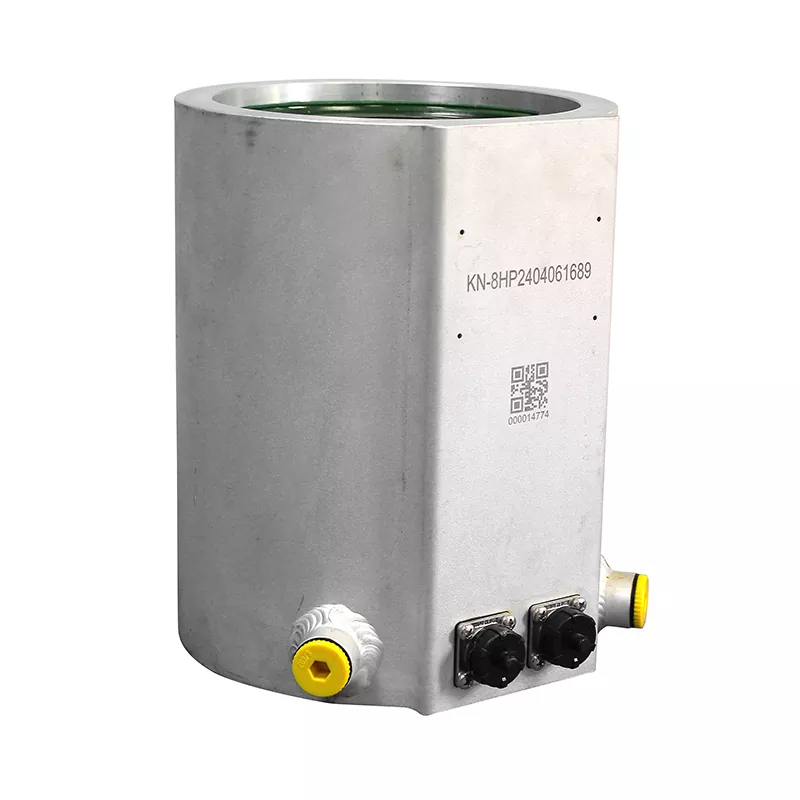

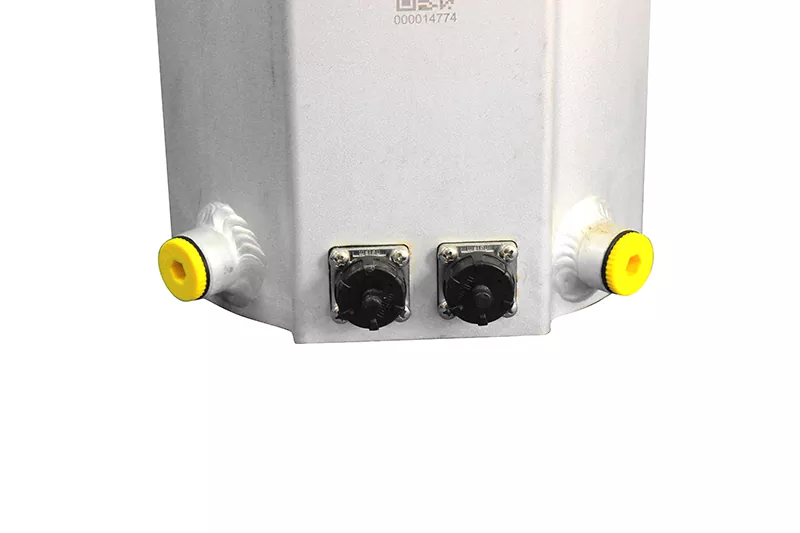

Jiafeng Power's durable High Efficiency Cantilever Water Cooled Induction Motor is premium industrial motors. The motor has an innovative design and a unique structure that deliver significantly better cooling performance than conventional air-cooled models. This advanced cooling system cuts down the risk of overheating and breakdowns really well, so it gives a more reliable and efficient power solution for all kinds of industrial
|
No. |
Power |
Voltage |
Frequency |
Speed (rpm) |
Current |
Efficiency |
Power Factor |
Insulation Class |
Duty Type |
Connection |
Protection level |
Motor Frame |
|
1 |
3KW |
380V |
50-100Hz |
2850-5850 |
5.6A |
89.2% |
0.916 |
F |
S1 |
Y |
IP68 |
112 |
|
2 |
4.5KW |
380V |
50-100Hz |
2850-5850 |
8.3A |
90.6% |
0.914 |
F |
S1 |
Y |
IP68 |
112 |
|
3 |
6KW |
380V |
50-100Hz |
2850-5850 |
10.9A |
91.2% |
0.917 |
F |
S1 |
Y |
IP68 |
132 |
|
4 |
7.5KW |
380V |
50-100Hz |
2850-5850 |
13.6A |
91.5% |
0.919 |
F |
S1 |
Y |
IP68 |
132 |
|

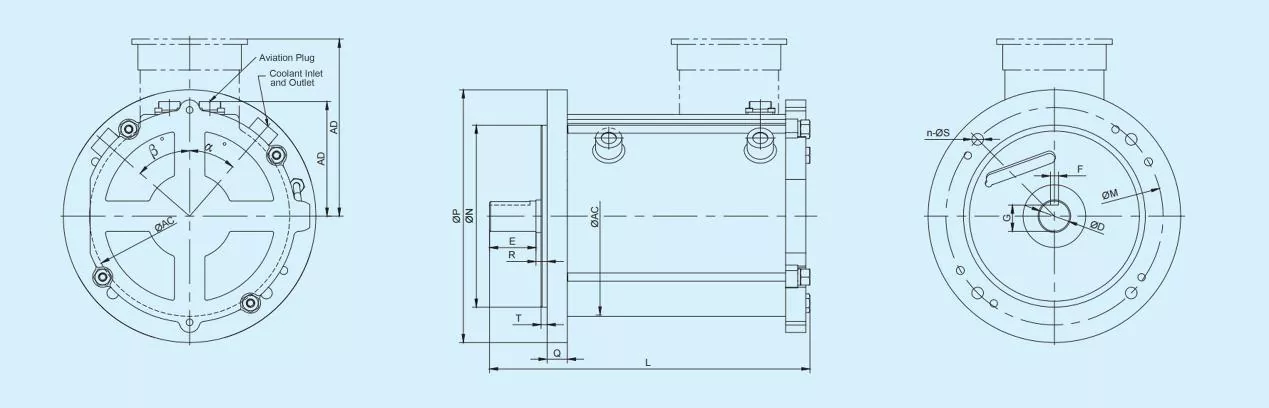

Motor Frame No. |
Power |
Dimension(mm) |
|||||||||||||||
|
D |
E |
F |
G |
M |
N |
T |
P |
R |
S |
n |
Q |
Y |
AC |
AD |
L |
||
|
112 |
3KW |
28 |
60 |
8 |
24 |
215 |
180 |
4 |
250 |
0 |
15 |
4 |
15 |
PT3/8 |
198 |
146 |
291 |
|
132 |
4.5KW |
28 |
60 |
8 |
24 |
215 |
180 |
4 |
250 |
0 |
15 |
4 |
15 |
PT3/8 |
198 |
146 |
311 |
|
132 |
6-7.5KW |
38 |
80 |
10 |
33 |
265 |
230 |
4 |
300 |
0 |
15 |
4 |
15 |
PT3/8 |
198 |
146 |
366 |
1)High Efficiency: The quality High Efficiency Cantilever Water Cooled Induction Motors are designed to convert electrical energy into mechanical energy with minimum loss mostly cutting energy waste,then lowering the operating expenses.
2)Effective Cooling system: With its advanced water cooling technology, these motors maintain idea operating temperature during heavy-duty load or continuous runs. This could extends service life while preserving long-term performance.

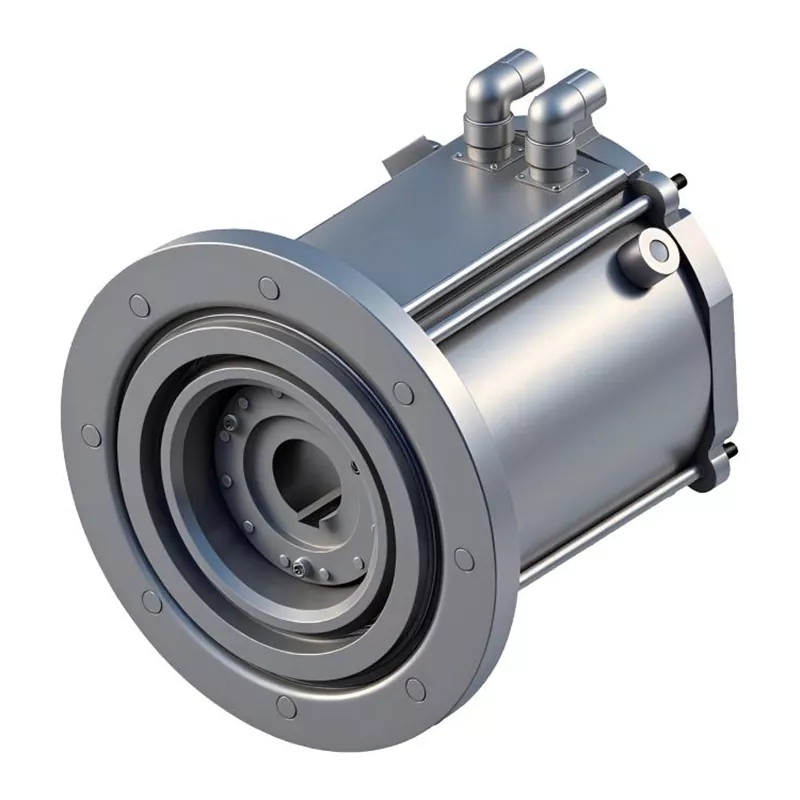

3)Compact Design: The space-saving cantilever configuration eliminates the need for couplings while enabling direct equipment connection. This streamlined design fits perfectly where installation space is tight.
4)High Power Density: although its compact dimensions, but the motor delivers exceptional power output, it is perfect for applications demanding big performance in limited spaces.
5) Low Noise : the water cooling technology efficiently reduced the motor working noise, making these motors ideal for noise sensitive environments and residential areas.
6)Customizability: The High Efficiency Cantilever Water Cooled Induction Motor can be custom-made as customer's requirements, with adjustable power output, speed parameters, and other performance characteristics.
Our High Efficiency Cantilever Water Cooled Induction Motor serve numerous sectors including photovoltaic, semiconductor manufacturing, new energy batteries, chemical processing, food production, and medical equipment.
