Fully Enclosed Water-Cooled Permanent Magnet Variable Frequency Integrated Motor: An Energy-Saving Revolution for Extreme Industrial Environments

In industrial motor applications, there has long been a category of challenging operating environments where traditional variable frequency drive (VFD) solutions struggle to perform effectively—high-temperature enclosed workshops, underground mines, high-humidity facilities, and dusty industrial sites. These environments often suffer from poor heat dissipation, limited installation space, excessive dust, or moisture intrusion. As a result, conventional air-cooled motors and separate VFD systems frequently experience failures, reduced service life, and increased maintenance costs.

The Fully Enclosed Water-Cooled Permanent Magnet Variable Frequency Integrated Motor was developed specifically to address these challenges.

Water-Cooling Technology: From Thermal Limitations to Significantly Reduced Temperature Rise

Traditional air-cooled motors rely on air circulation for heat dissipation. In enclosed or high-temperature environments, heat cannot be effectively removed, leading to overheating, power derating, and even motor failure.

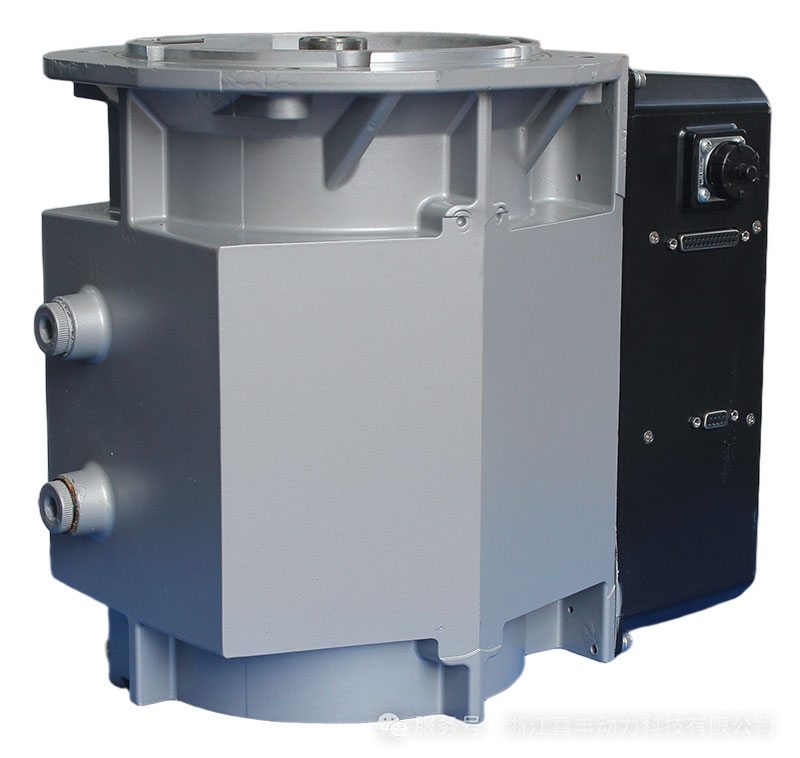

The fully enclosed water-cooled integrated motor adopts a dual water-cooling design for both the motor and the variable frequency drive. Cooling water circulates through the motor stator housing and the VFD power modules simultaneously, carrying heat away directly and efficiently.

The benefits of this design are substantial. For the same physical size, the motor can achieve a significantly higher power density. Even under full-load or overload conditions, the system can maintain stable low-temperature operation. Field test data shows that replacing conventional air-cooled induction motors with water-cooled integrated motors can reduce motor surface temperature rise by more than 30%.

Lower operating temperatures not only improve efficiency but also extend insulation life and reduce maintenance requirements.

Fully Enclosed Construction: Superior Protection Against Dust and Moisture

Another major advantage of the fully enclosed water-cooled integrated motor is its exceptional protection capability.

Conventional air-cooled motors require ventilation openings for airflow, allowing dust, moisture, and corrosive gases to enter the motor, which increases the risk of failure. In contrast, the water-cooled integrated motor features a fully enclosed housing. Heat is removed through internal cooling channels rather than external airflow, eliminating the need for ventilation openings.

As a result, protection ratings of IP55 or higher can be achieved with ease. Internal electronic components are completely isolated from harsh environmental conditions.

In industries such as metallurgy, chemical fiber production, and underground mining, where humidity and dust levels are particularly high, this design significantly improves equipment reliability. In some applications, annual maintenance frequency has reportedly been reduced from five service interventions per year to fewer than one, cutting maintenance costs by more than half.

Plug-and-Play Integration: Continuing the Benefits of an Integrated Design

As an advanced member of the permanent magnet variable frequency integrated motor family, the fully enclosed water-cooled version retains the core plug-and-play advantages of integrated systems.

The motor and VFD are factory-matched and pre-configured before shipment, eliminating the need for complex on-site commissioning. Users can simply connect the power supply and begin operation.

The compact integrated design also eliminates the need for a separate control cabinet, reducing installation space requirements and making it particularly suitable for retrofit projects with limited available space.

From an energy-efficiency perspective, the motor utilizes high-performance rare-earth permanent magnet materials and achieves the IE5 ultra-high-efficiency level. Compared with traditional induction motors, efficiency can improve by approximately 10%. When combined with variable frequency speed control, overall energy savings can be even greater.

Ideal Applications: Designed for Demanding Industrial Conditions

Fully Enclosed Water-Cooled Permanent Magnet Variable Frequency Integrated Motors are particularly suitable for the following environments:

High-Temperature Enclosed Areas

Examples include:

These facilities typically have poor air circulation and high ambient temperatures, where air-cooling solutions often become ineffective and water cooling provides a more reliable alternative.

High-Humidity and Dusty Environments

Examples include:

In these applications, high protection ratings are critical. The fully enclosed design prevents moisture and dust from entering the equipment.

Noise-Sensitive Locations

Examples include:

Because the water-cooling system eliminates the need for high-speed cooling fans, operating noise is significantly reduced, creating a quieter working environment.

Conclusion

The Fully Enclosed Water-Cooled Permanent Magnet Variable Frequency Integrated Motor combines four key technologies into a single integrated solution:

By integrating these technologies into one system, it extends the benefits of variable frequency energy-saving solutions from clean manufacturing facilities to the most demanding industrial environments. As industries continue to pursue energy efficiency, reliability, and sustainability, this technology represents a critical step toward a greener and more efficient industrial future.
