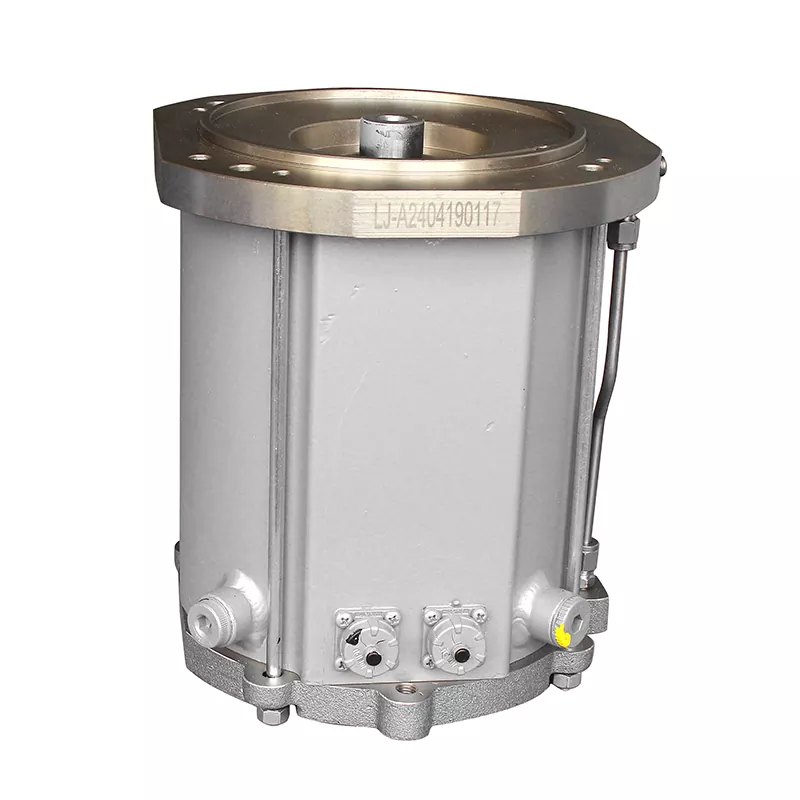

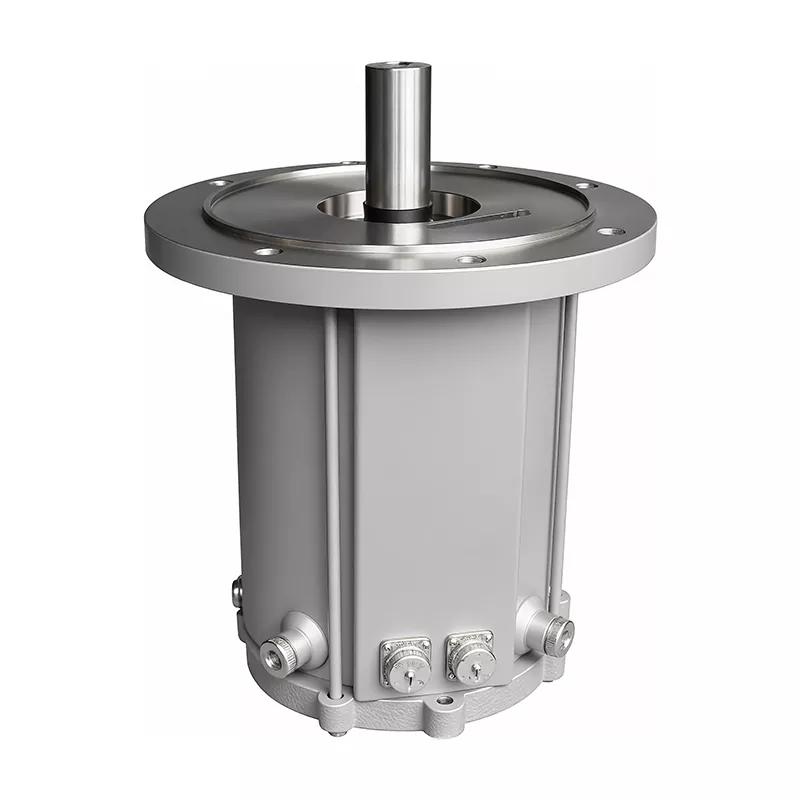

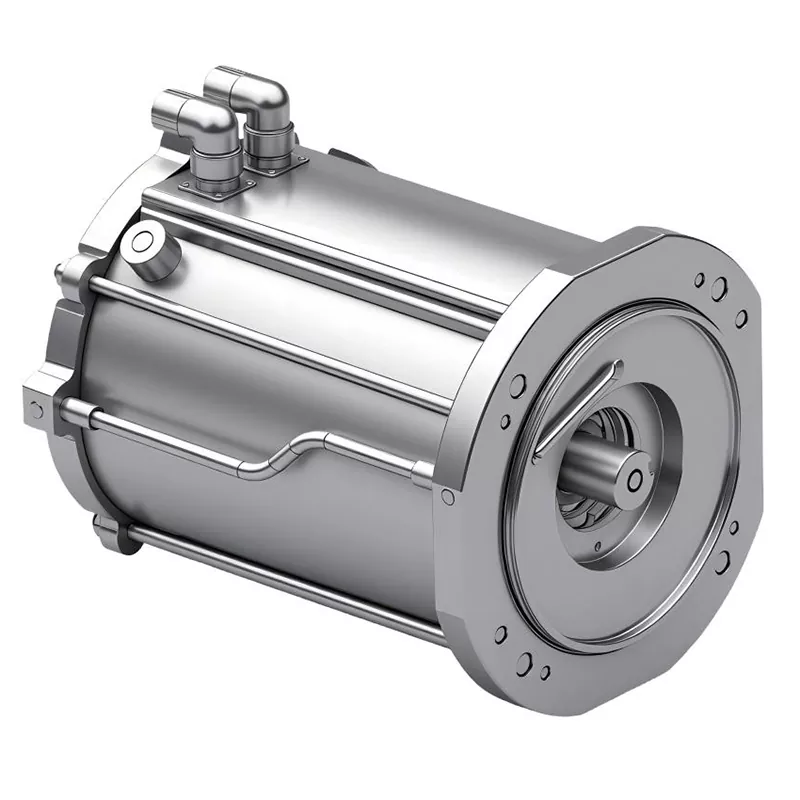

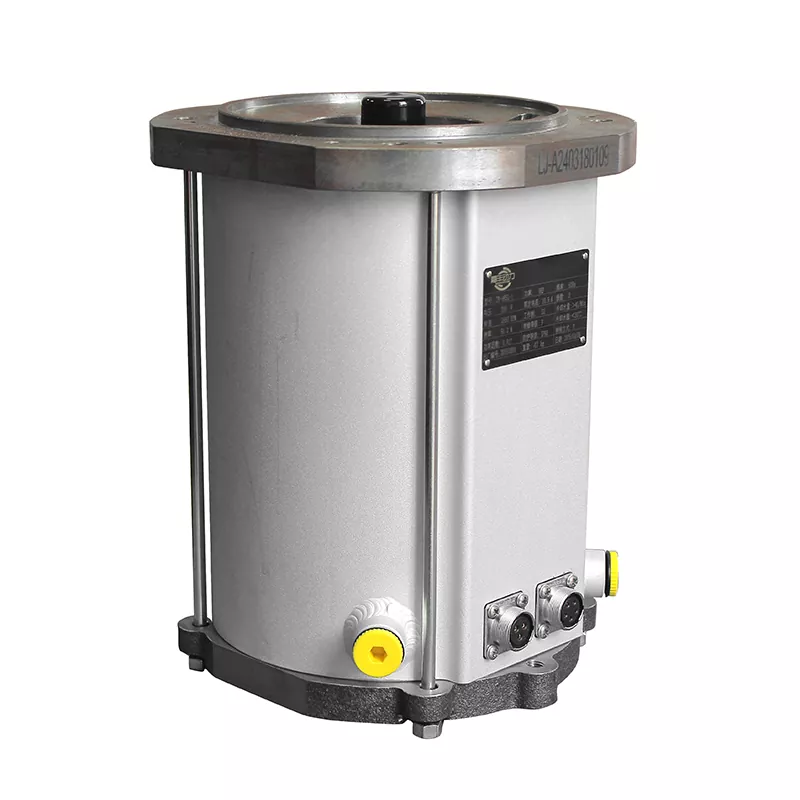

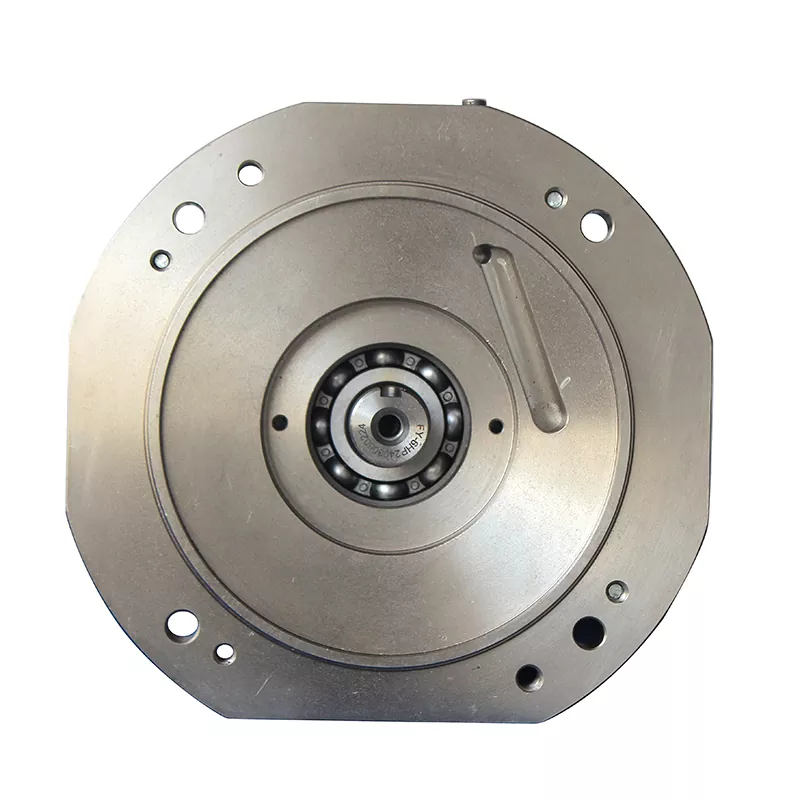

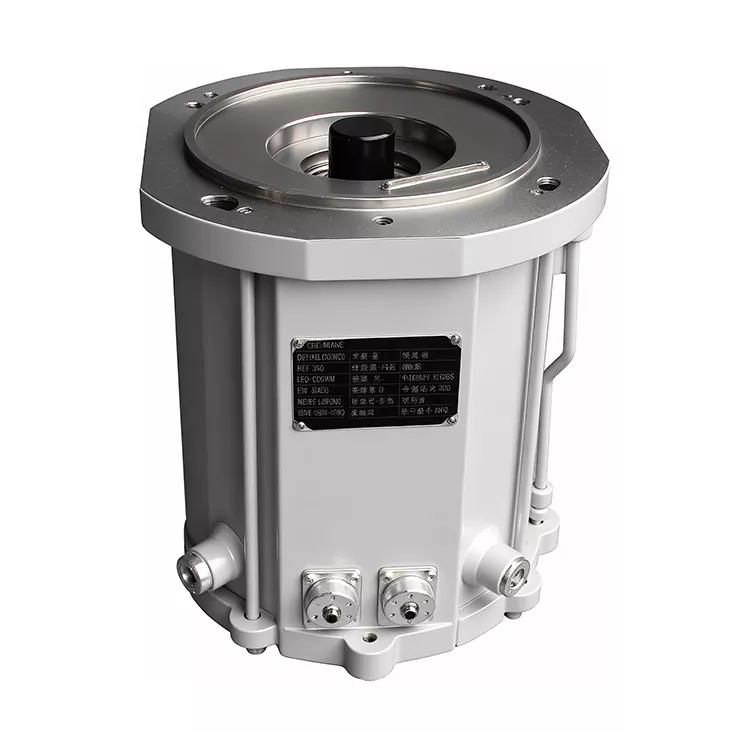

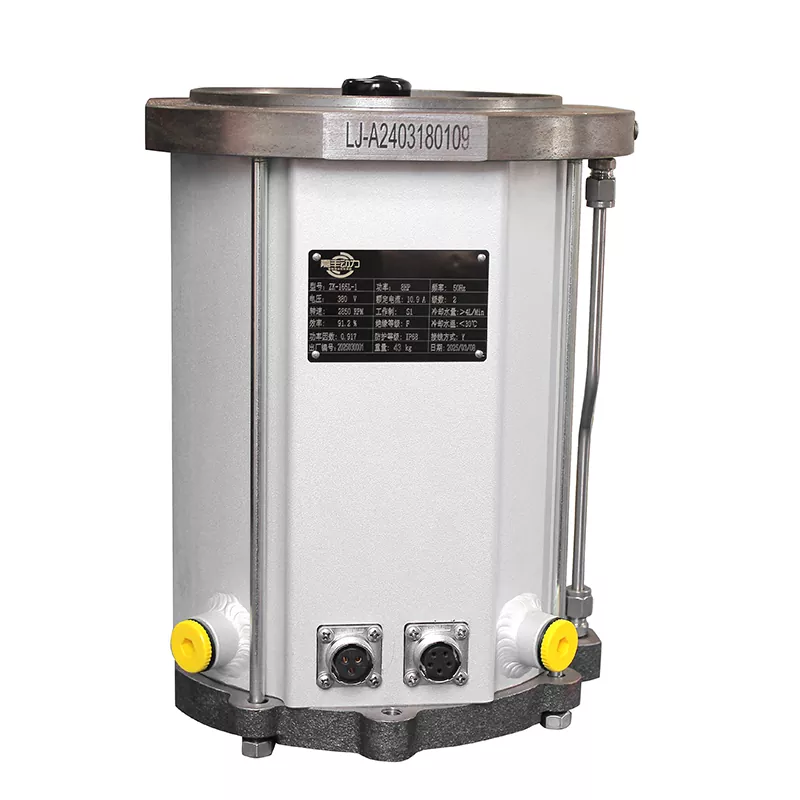

High Efficiency Water Cooled Permanent Magnet Motors,as a key product of Jiafeng Power Factory, it has cutting-edge electromagnetic design,high-quality permanent magnet materials, and water-cooling technology into one. Due to its superior performance,it is widely used in fields such as the photovoltaic industry, high-end industrial drives, the semiconductor industry, and new energy etc.Designed to provide customers with powerful, quiet, and energy-efficient power solutions.It meet the demand for stable operation under different working conditions, while offering low maintenance costs and a service life of over 10 years.
|
No. |
Power |
Voltage |
Frequency |
Poles |
Speed(rpm) |
Current |
Efficiency |
Power Factor |
Insulation Class |
DutyType |
Connection |
Protection level |
Motor Frame |
|
1 |
4KW |
380V |
150-300Hz |
6 |
3000-6000 |
7.2A |
91.7% |
0.92 |
F |
S1 |
Y |
IP68 |
112 |
|
2 |
4.5KW |
380V |
150-300Hz |
6 |
3000-6000 |
7.95A |
92.55% |
0.925 |
F |
S1 |
Y |
IP68 |
112 |
|
3 |
6KW |
380V |
150-300Hz |
6 |
3000-6000 |
10.7A |
93.1% |
0.935 |
F |
S1 |
Y |
IP68 |
132 |
|
4 |
7.5KW |
380V |
150-300Hz |
6 |
3000-6000 |
12.9A |
93.6% |
0.95 |
F |
S1 |
Y |
IP68 |
132 |
|
5 |
11KW |
380V |
150-300Hz |
6 |
3000-6000 |
18.6A |
94.5% |
0.96 |
F |
S1 |
Y |
IP68 |
160 |
|

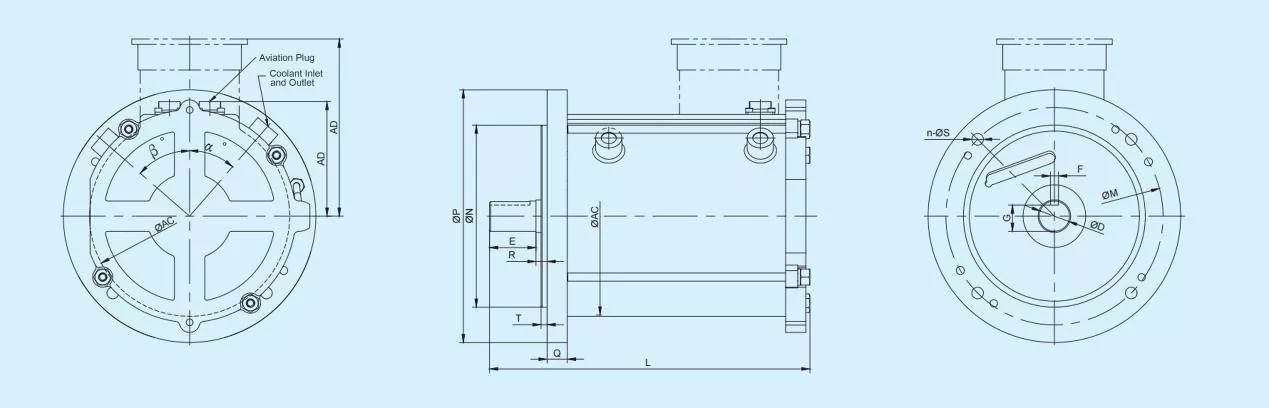

Motor Frame No. |
Power |
Dimension(mm) |
|||||||||||||||
|
D |
E |
F |
G |
M |
N |
T |
P |
R |
S |
n |
Q |
Y |
AC |
AD |
L |
||
|
112 |
4-4.5KW |
28 |
60 |
8 |
24 |
215 |
180 |
4 |
250 |
0 |
15 |
4 |
15 |
PT3/8 |
198 |
146 |
291 |
|
132 |
6-7.5KW |
38 |
80 |
10 |
33 |
265 |
230 |
4 |
300 |
0 |
15 |
4 |
15 |
PT3/8 |
198 |
146 |
291 |
|
160 |
11KW |
42 |
110 |
12 |
37 |
300 |
250 |
5 |
350 |
0 |
19 |
4 |
20 |
PT3/8 |
198 |
146 |
366 |
1) Super-High Efficiency Class.High Efficiency Water Cooled Permanent Magnet Motors Adopt high-quality permanent magnets and high-precision electromagnetic design, the motor achieves a maximum efficiency of IE5 energy efficiency class or above.

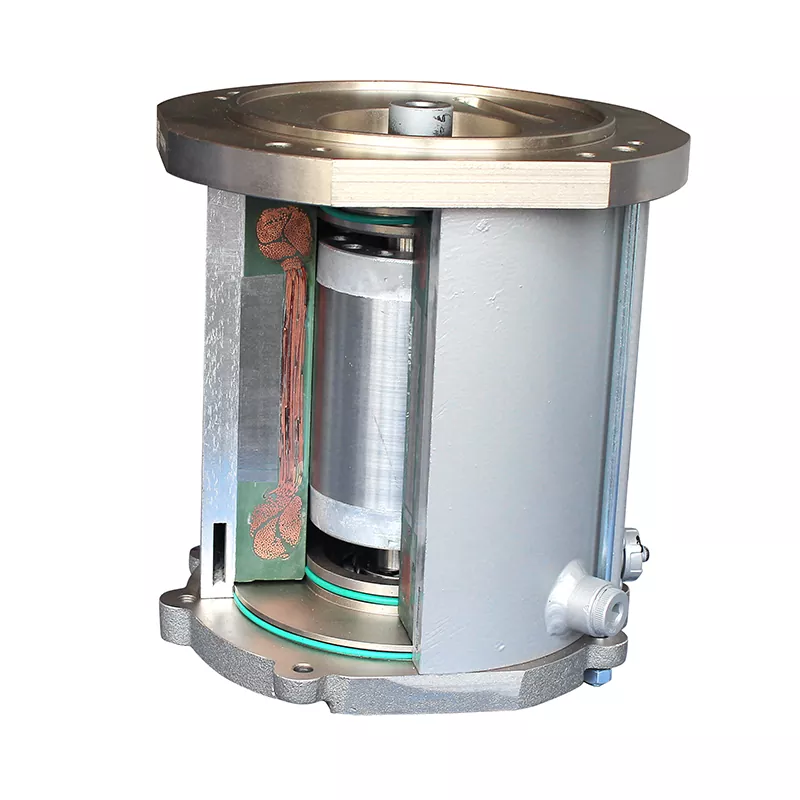

2) Excellent Cooling Performance.The water-cooling system efficiently dissipates heat from the interior of the motor, effectively controlling the motor's temperature rise. Low temperature rise means minimal changes in winding resistance, reducing additional copper loss caused by heat generation and ensuring the motor operates continuously within the high-efficiency range.
3) High Power Density. Supported by the water-cooling system, the motor can withstand higher electromagnetic loads, enabling it to deliver greater power and torque in a smaller volume. This enhances space utilization and the energy efficiency ratio.
4) Improved System Energy Efficiency. its high-efficiency feature helps reduce battery energy consumption or lower industrial electricity usage. At the same time, it reduces heat generation and lessens the demand for surrounding cooling systems, thereby improving the overall energy efficiency of the entire power system.
To summarize,advanced High Efficiency Water Cooled Permanent Magnet Motors achieve extreme energy conversion efficiency under all operating conditions is due to the combination of "low-loss" design and manufacturing, and "high-efficiency heat dissipation" water-cooling technology.
