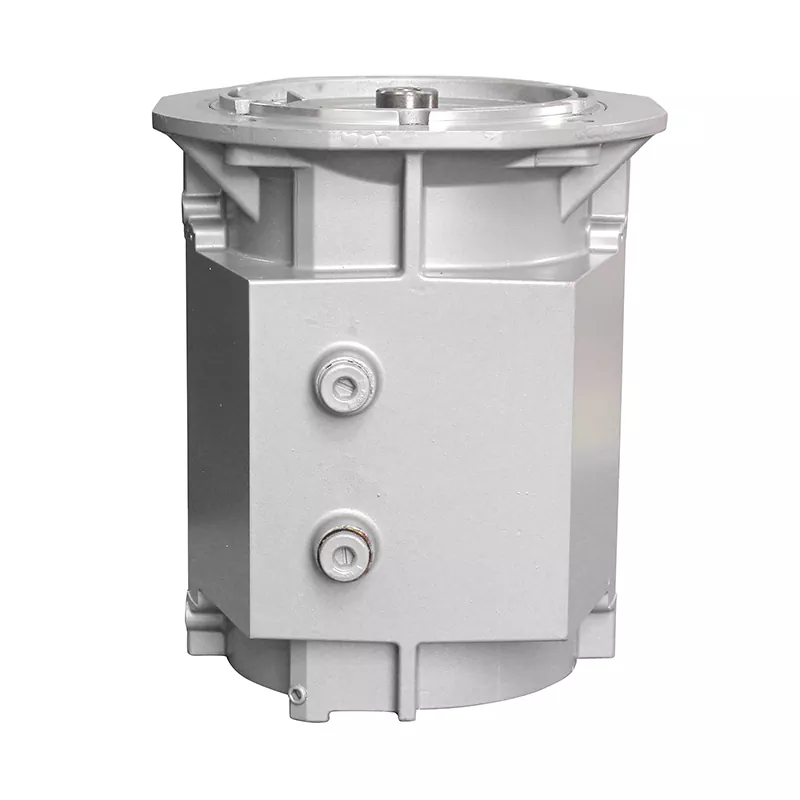

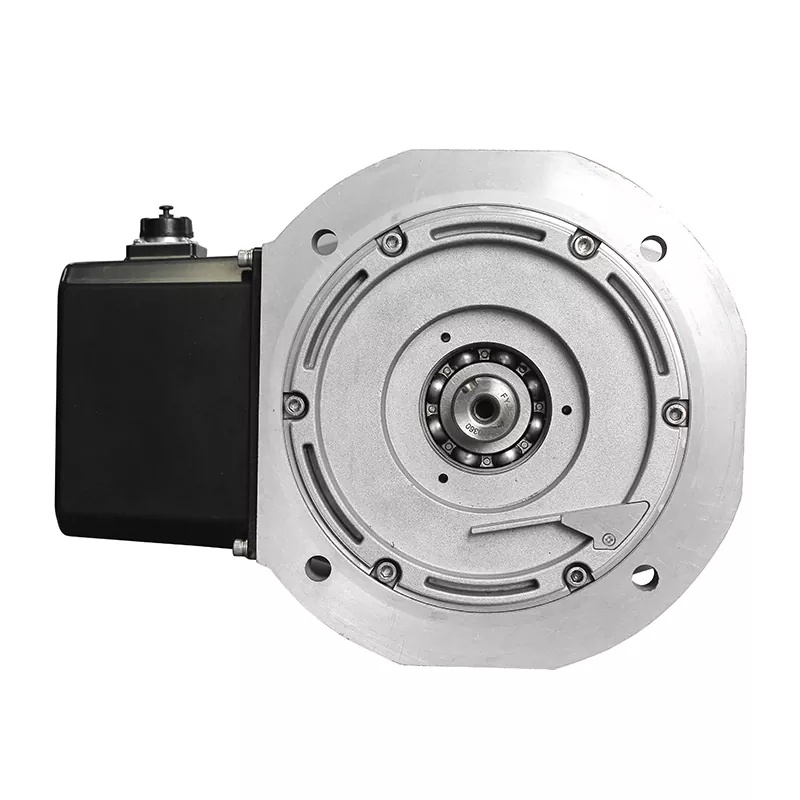

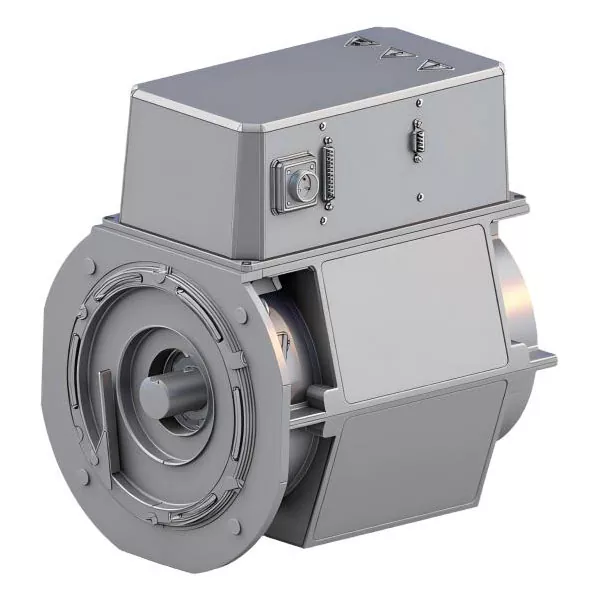

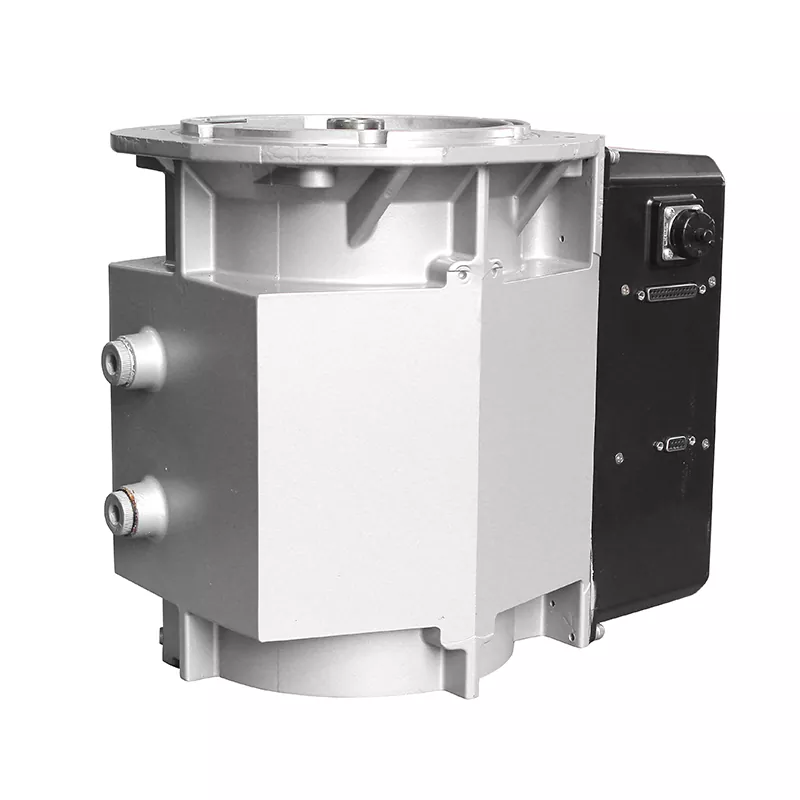

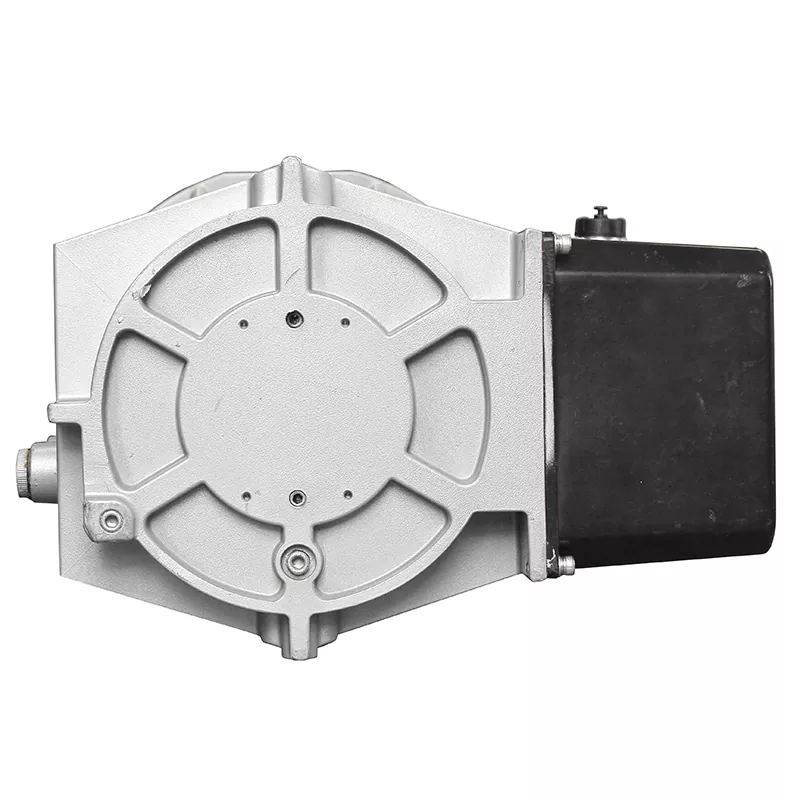

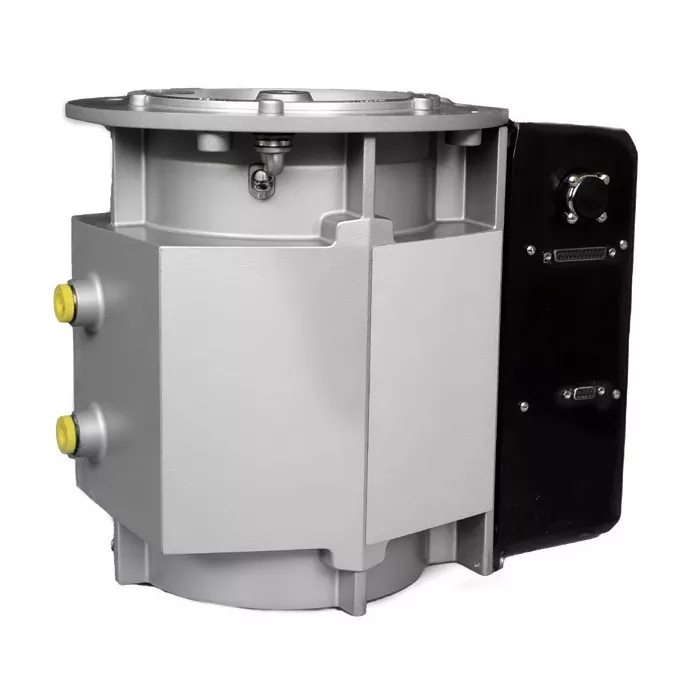

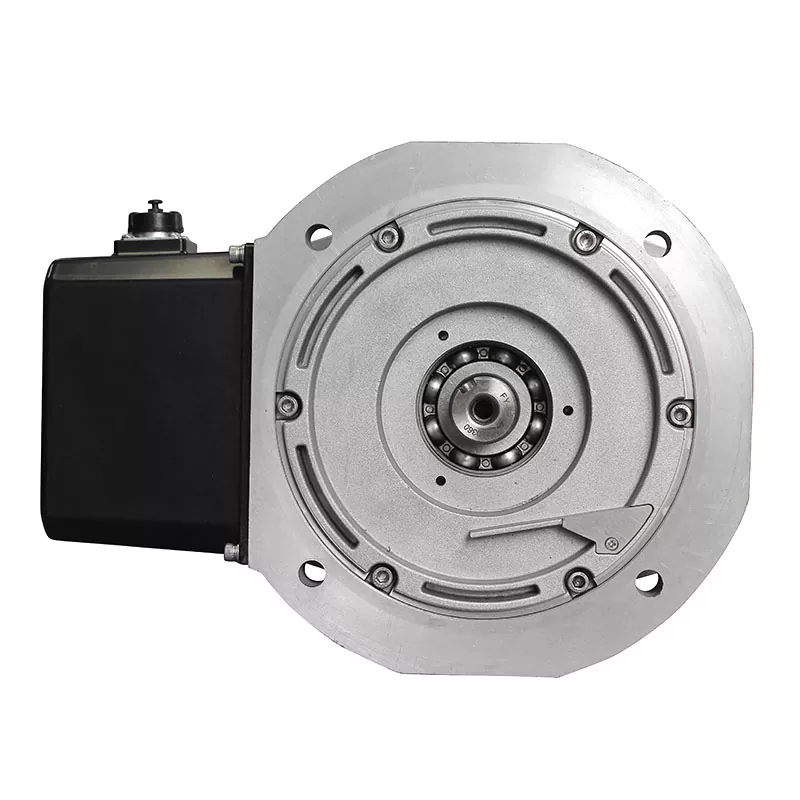

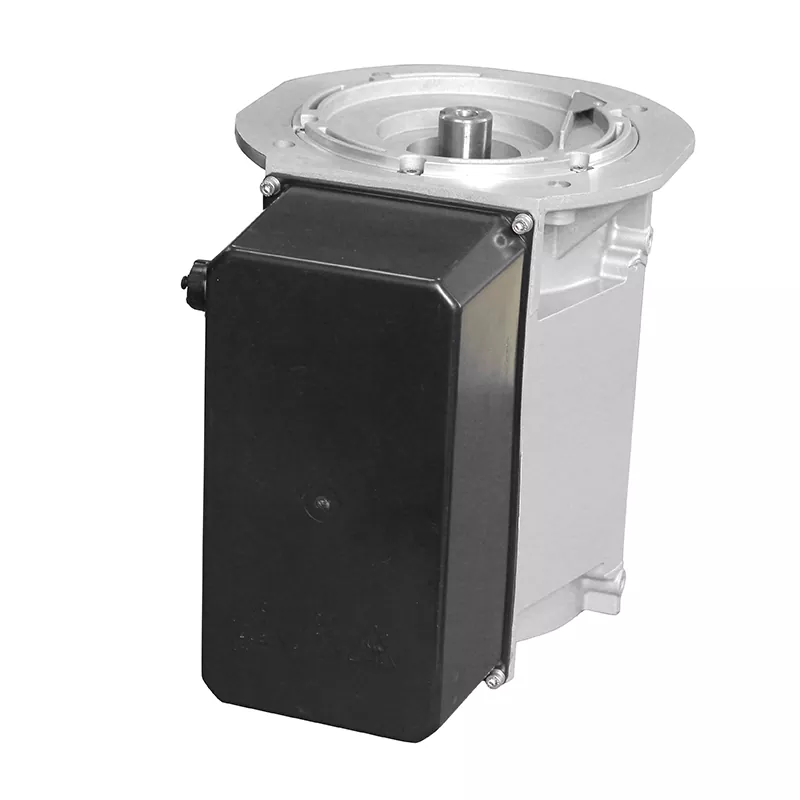

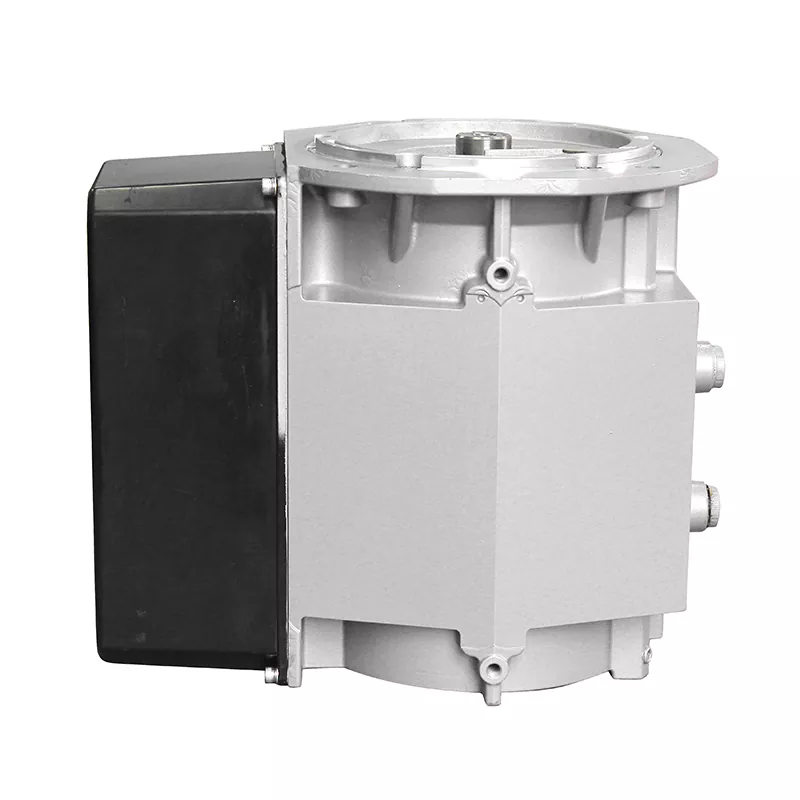

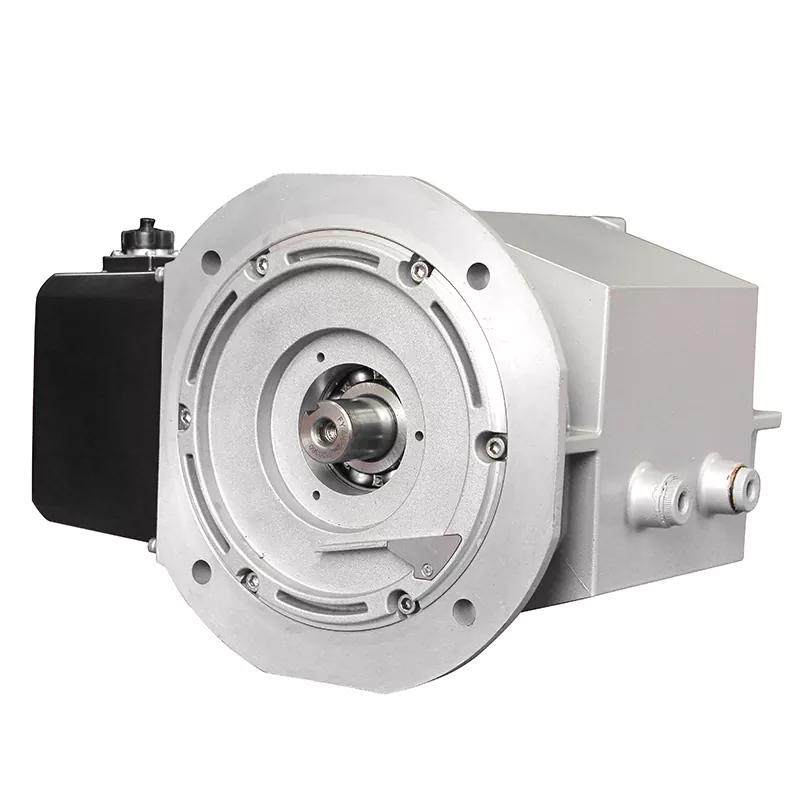

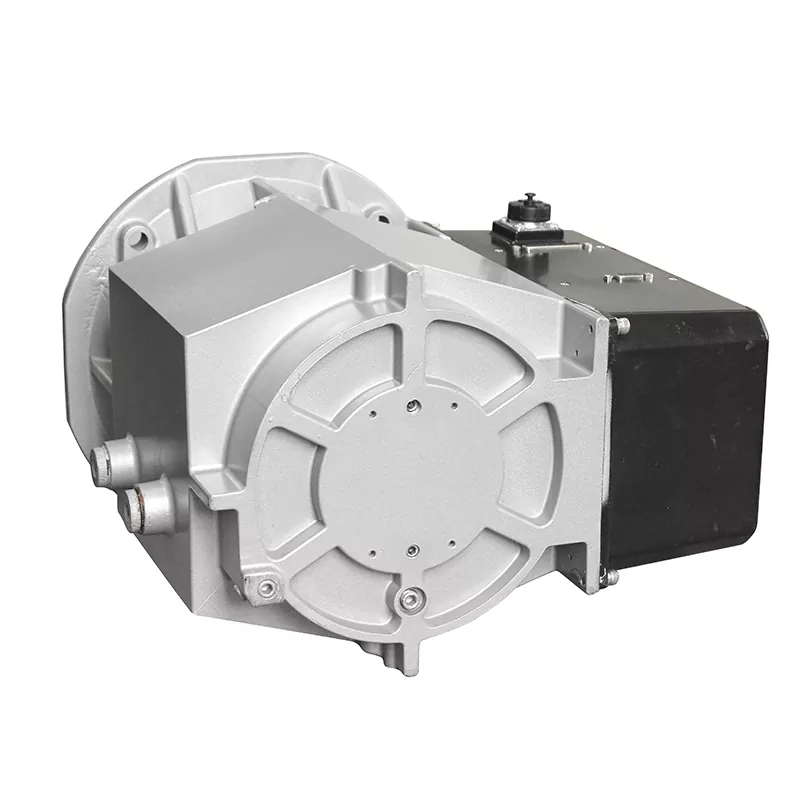

Integrated Water Cooled Induction Motor

Jiafeng Power as a specialized manufacturer dedicated to the R&D, production, and supply of Integrated Water Cooled Induction Motors. The product combines efficient heat dissipation, lightweight design, and strong corrosion resistance. These motors not only meet IE4 efficiency standards to reduce energy consumption, but also excel in harsh and precision-driven environments. Jiafeng Power ensures its motors meet global industrial demands, providing stable, long-lasting power solutions for clients worldwide,as a trusted partner in high-efficiency motor technology.

Send Inquiry

Product Description

The Integrated Water Cooled Induction Motor, a newly developed product from Jiafeng Power, features a compact and efficient design that saves installation space and simplifies equipment layout. Its smaller footprint reduces the complexity of wiring and piping connections, while the lightweight, integrated structure makes it easy to move and install, helping enterprises save time and labor costs. Built in Jiafeng Power’s certified factory with strict quality control, this durable motor provides a reliable and high-performance solution for industrial applications and is available as a customized option to meet specific operational requirements.

Product Specification

No.	Power	Voltage	Frequency	Speed(rpm)	Current	Efficiency	Power Factor	Insulation Class	DutyType	Connection	Protection level
1	3KW	380V	50-100Hz	2850-5850	5.6A	89.2%	0.916	F	S1	Y	IP68
2	4.5KW	380V	50-100Hz	2850-5850	8.3A	90.6%	0.914	F	S1	Y	IP68
3	6KW	380V	50-100Hz	2850-5850	10.9A	91.2%	0.917	F	S1	Y	IP68
4	7.5KW	380V	50-100Hz	2850-5850	13.6A	91.2%	0.917	F	S1	Y	IP68

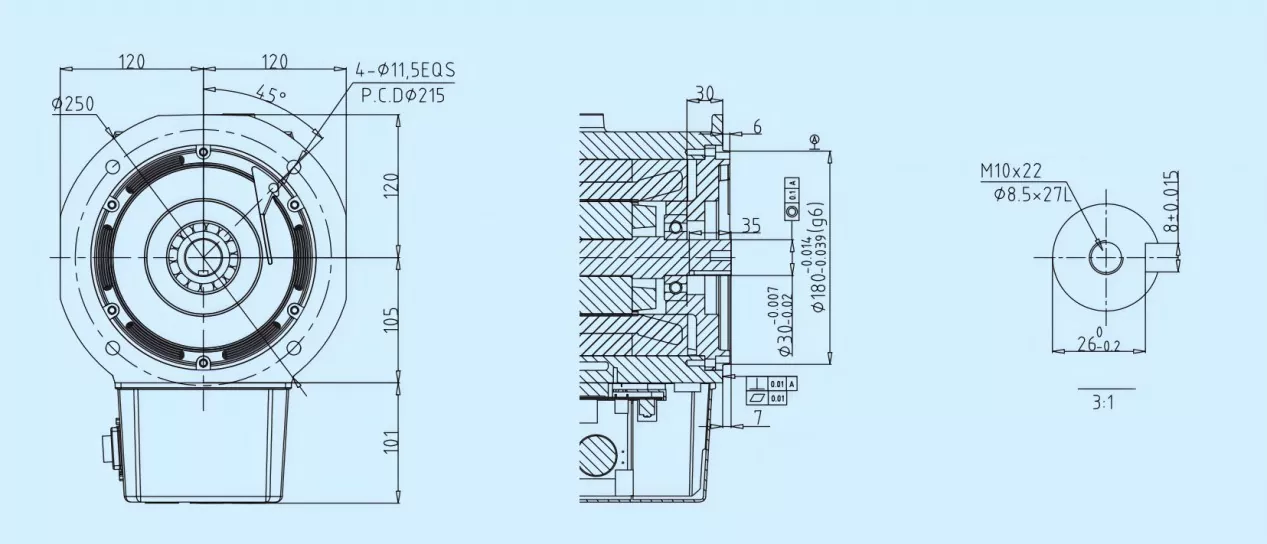

Mounting Size

Integrated Water Cooled Induction Motor

Products Feature

Advantage	Detailed Description
Efficient heat dissipation	Integrated Water Cooled Induction Motors with efficient heat dissipation, to ensure stable operation, maintain the equipment working within a lower temperature range, enhancing stability and reliability, and guaranteeing consistent motor output performance, to extend the service life.
Performance optimization	Increase power density to meet the cooling requirements of high-power equipment and achieve higher output power; enable better system coordination and control,improving equipment response speed and control precision.
Low Noise and Vibration	The durable Integrated Water Cooled Induction Motors, provide a quiet operating environment, reduce the impact of noise pollution on operators, and enhance work comfort and productivity; to comply with environmental requirements.
Easy maintenance	Simplify maintenance procedures, reduce the number of equipment components and connection points, facilitate fault diagnosis and repair, and centralize maintenance of the cooling system; enhance equipment reliability, reduce downtime and repair costs, with low maintenance costs for the water cooling system.
