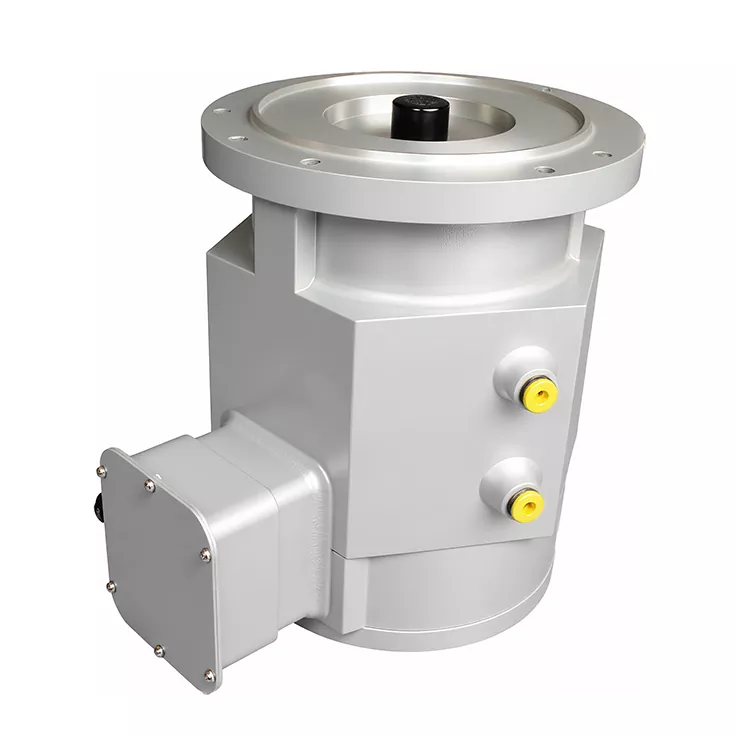

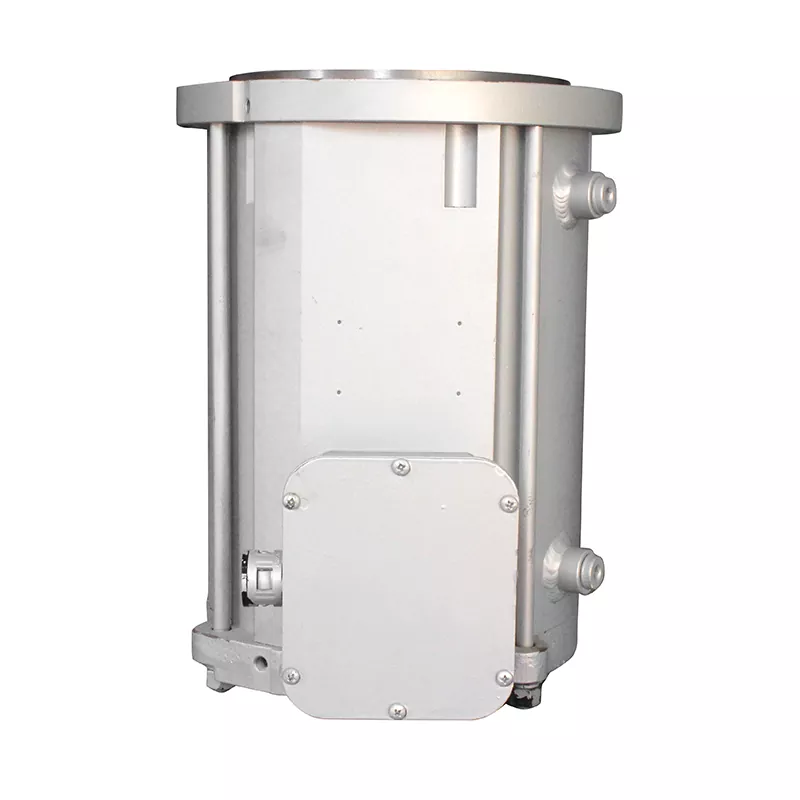

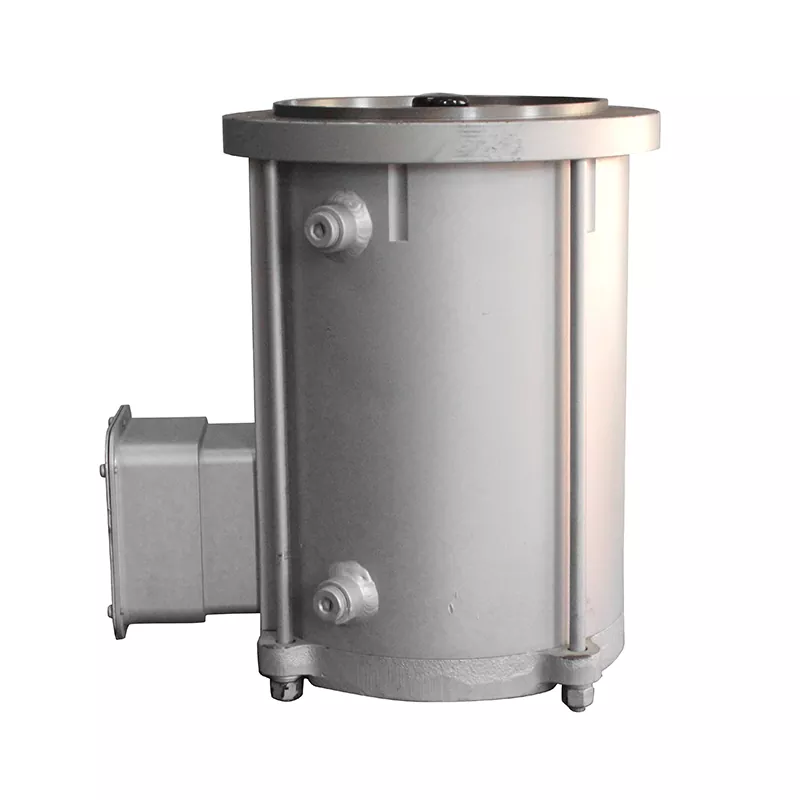

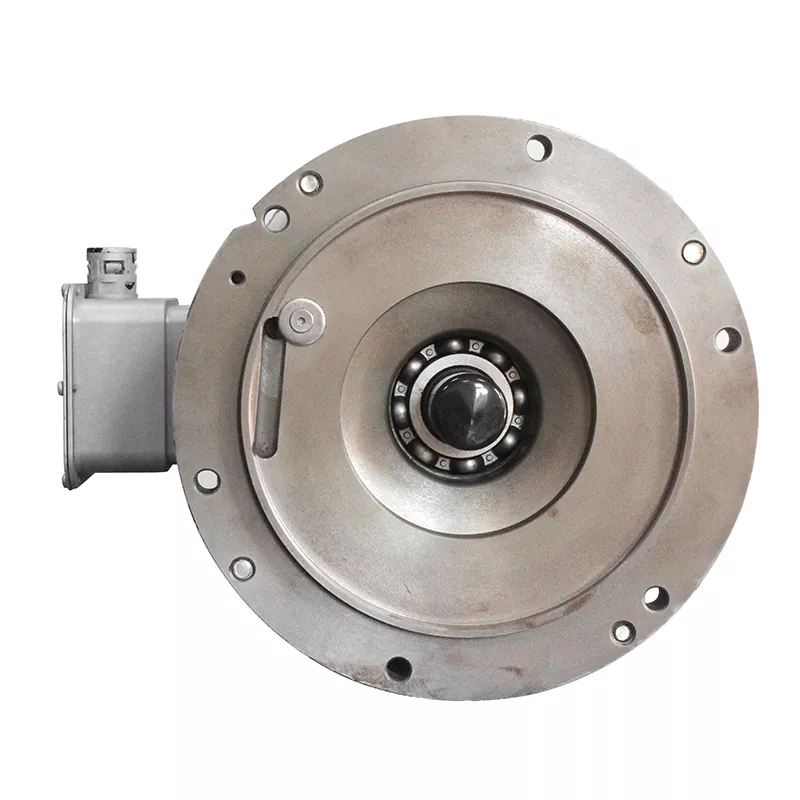

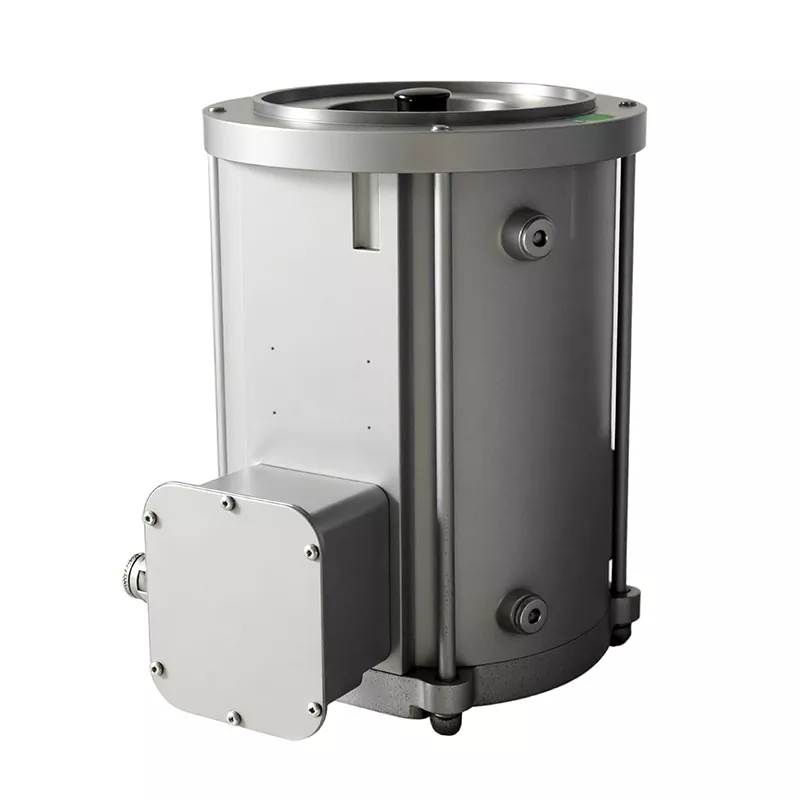

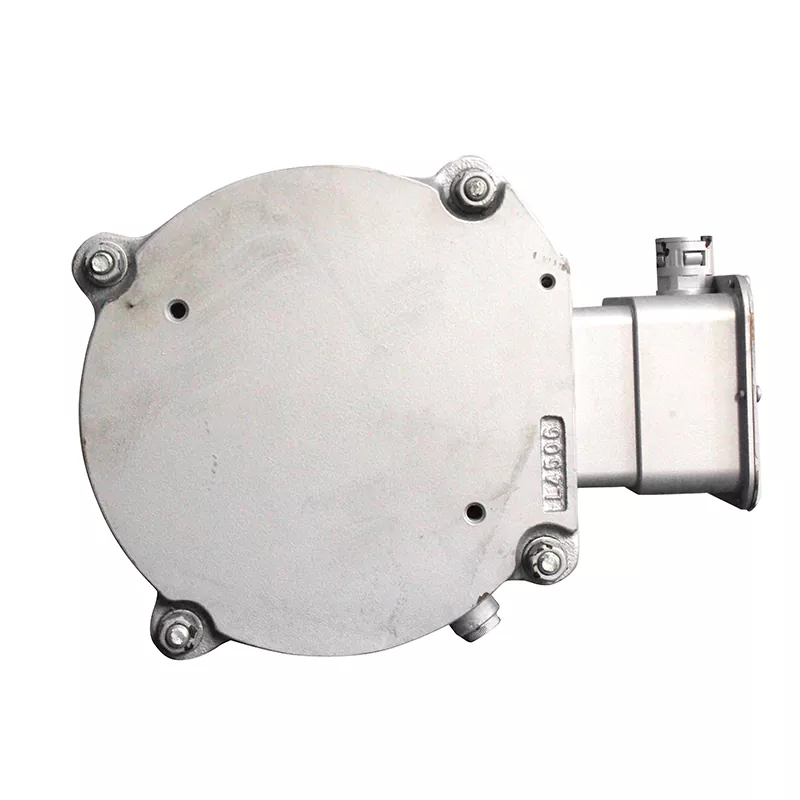

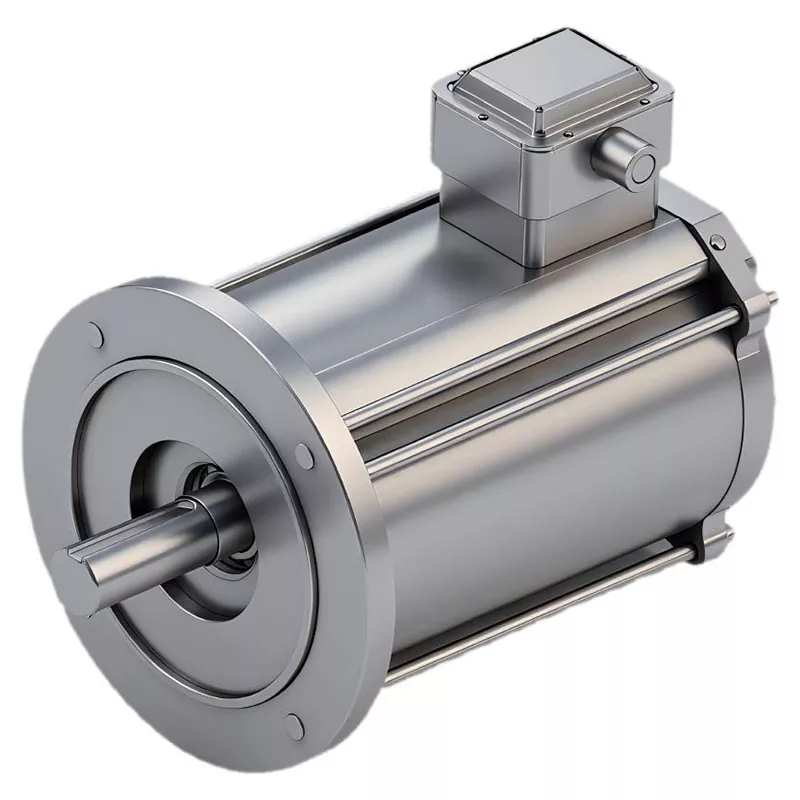

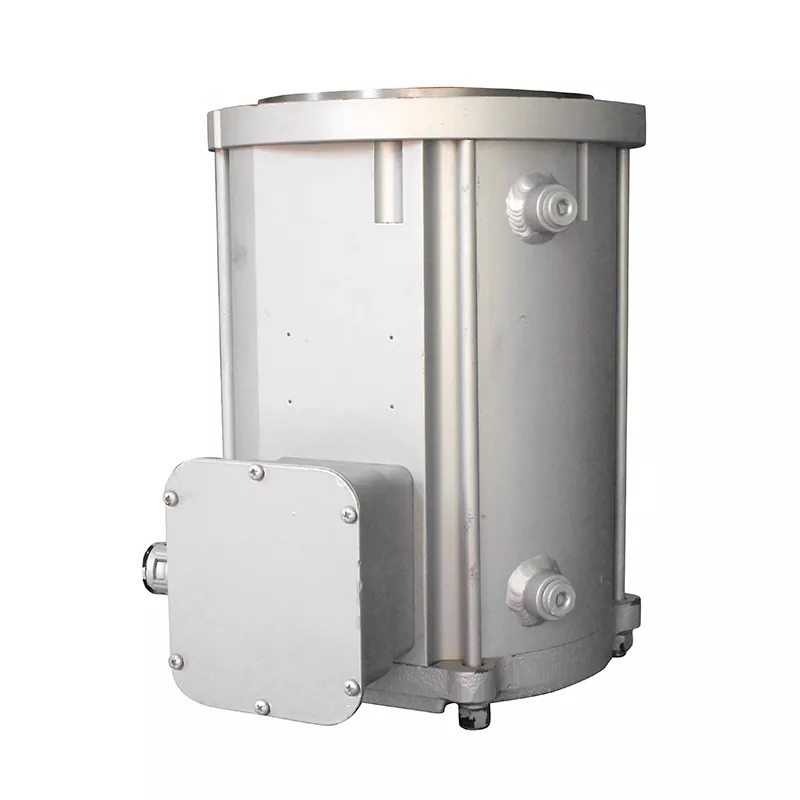

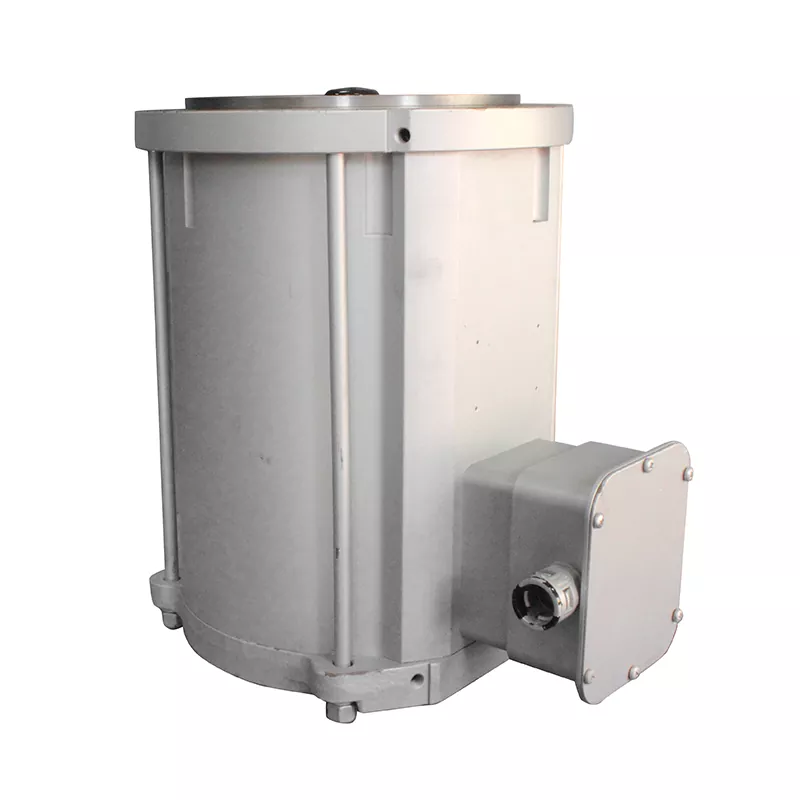

The IE4 Water Cooled Induction Motor from Jiafeng Power, a trusted motor supplier and manufacturer, is a fully sealed, high-quality motor featuring a lightweight aluminum housing.. It can quickly dissipate the heat generated during the motor's operation, reduce the internal temperature of the motor, improve the motor's working efficiency, and extend its service life. aluminum housing makes the quality IE4 water cooled Induction motors lighter, making it easy to carry and install, especially suitable for occasions with strict weight requirements.
|
No. |
Power |
Voltage |
Frequency |
Speed (rpm) |
Current |
Efficiency |
Power Factor |
Insulation Class |
Duty Type |
Connection |
Protection level |
Motor Frame |
|
1 |
11KW |
380V |
50-100Hz |
2850-5850 |
19.6A |
92.6% |
0.92 |
F |
S1 |
Y |
IP68 |
160 |
|
2 |
15KW |
380V |
50-100Hz |
2850-5850 |
26.5A |
93.4% |
0.922 |
F |
S1 |
Y |
IP68 |
160 |
|
3 |
18.5KW |
380V |
50-100Hz |
2850-5850 |
32.6A |
93.8% |
0.93 |
F |
S1 |
Y |
IP68 |
160 |
|
4 |
22KW |
380V |
50-100Hz |
2850-5850 |
38.9A |
94.2% |
0.932 |
F |
S1 |
Y |
IP68 |
180 |
|

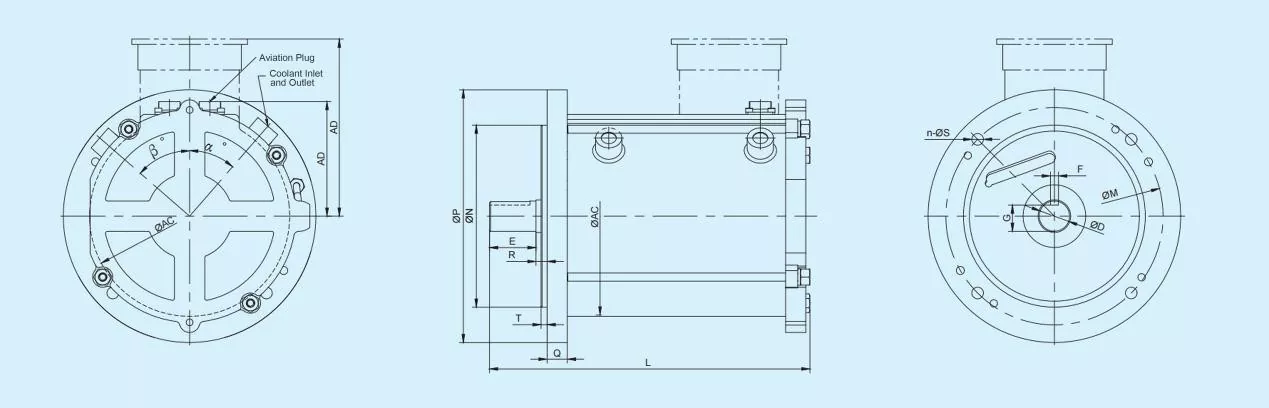

Motor Frame No. |
Power |
Dimension(mm) |
|||||||||||||||
|
D |
E |
F |
G |
M |
N |
T |
P |
R |
S |
n |
Q |
Y |
AC |
AD |
L |
||
|
160 |
11-18.5KW |
42 |
110 |
12 |
37 |
300 |
250 |
5 |
350 |
0 |
19 |
4 |
20 |
PT3/8 |
260 |
246 |
486 |
|
180 |
22KW |
48 |
110 |
14 |
42.5 |
300 |
250 |
5 |
350 |
0 |
19 |
4 |
20 |
PT3/8 |
260 |
246 |
521 |
Q:What is the efficiency level of this product?
A: This is a quality IE4 Water Cooled Induction Motors.
Q:What is the power range and voltage of this motor?
A:The product is available in 15HP/20HP/25HP/30HP configurations.the rated voltage is 380V, but we can customized the voltage as per customer’s request. As well as the rpm.
Q: What are the protection class and insulation class?
A: The motor with IP68 protection level.(fully dustproof and submersible in water under specified conditions).
Q: What is the cooling water requirement?
A: IE4 Water Cooled Induction Motors requires a minimum water flow rate of 4 L/min to maintain optimal thermal performance.
Q: In which industries is this motor suitable?
A: It is ideal for:
* Semiconductor manufacturing: Powering vacuum pumps in cleanroom environments.
* Photovoltaic (PV) production: Driving screw vacuum pumps in PV cell fabrication.
* Aerospace: Critical equipment like precision pumps and fans.
* New energy: Air compressors in EVs and PV inverters.
and others indutrial field.
