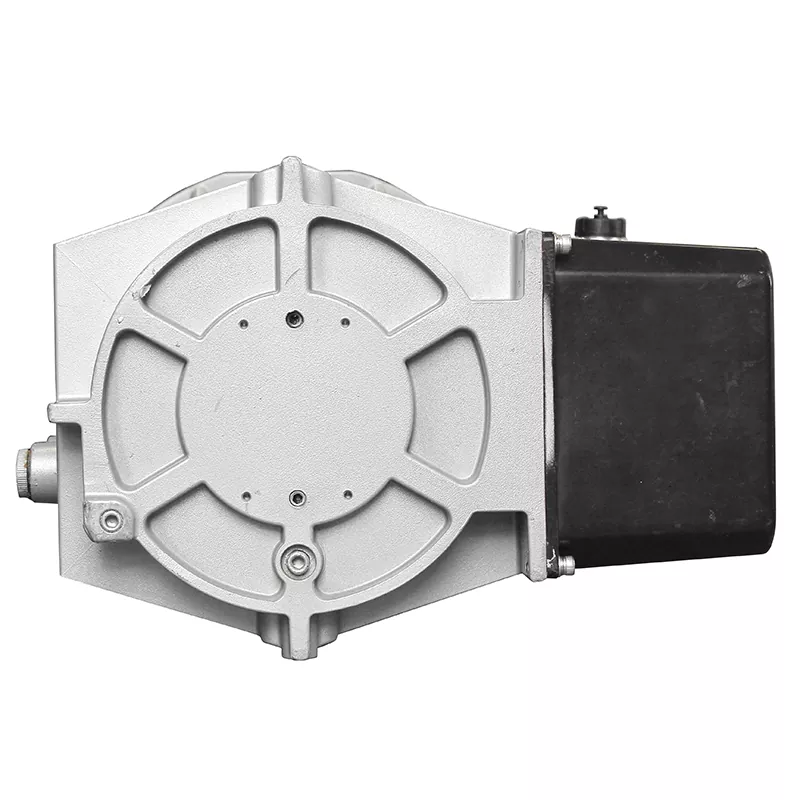

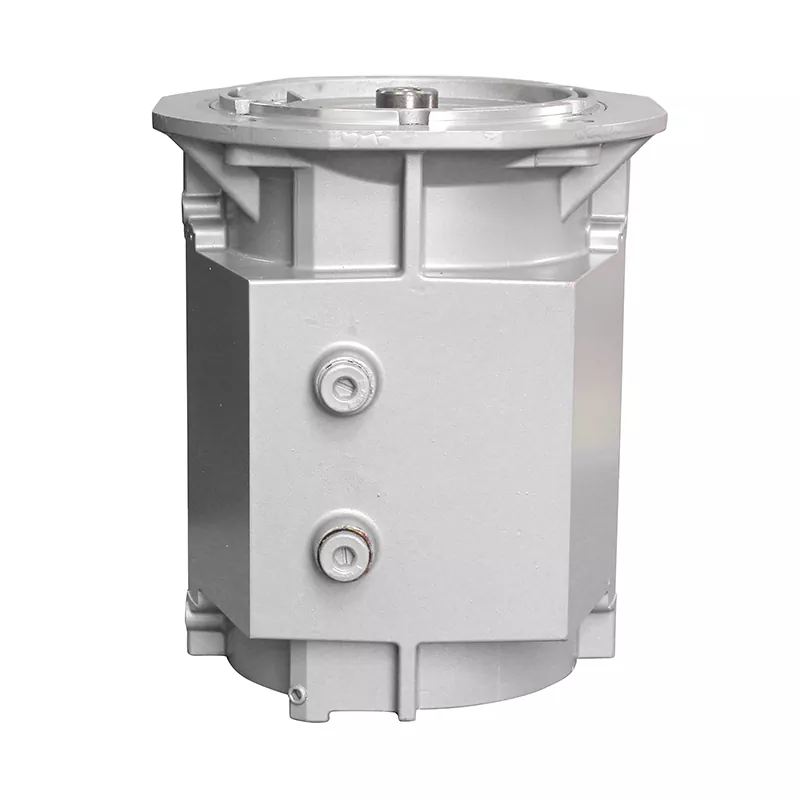

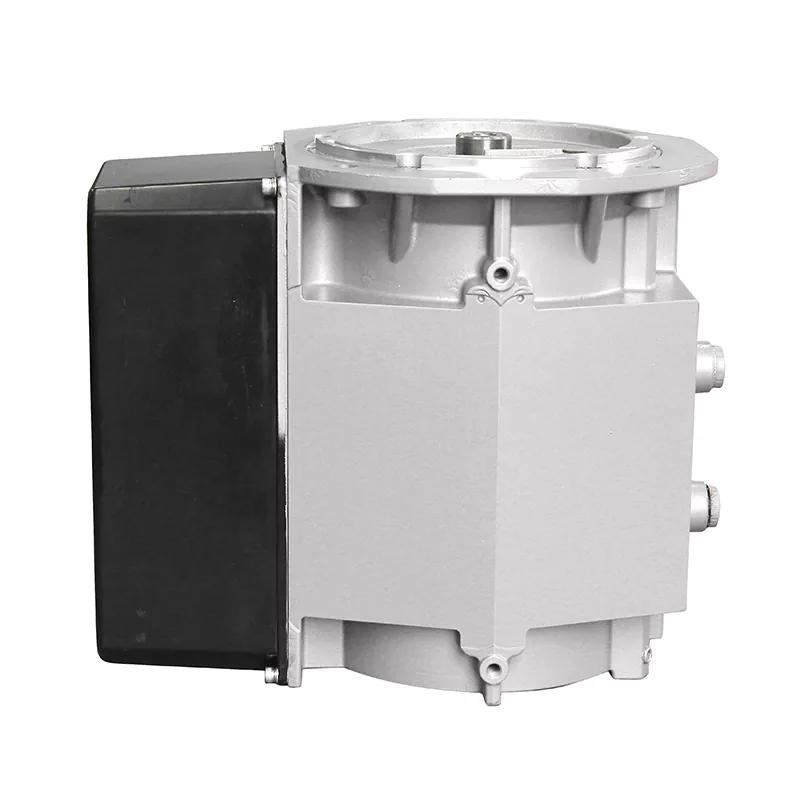

Integrated Water Cooled Synchronous Motor

Jiafeng Power, a trusted motor supplier and manufacturer, ensures that its integrated water-cooled synchronous motors meet the needs of the global industrial sector, providing customers worldwide with fast and durable power solutions. Therefore, our company has become a trusted partner in the field of high-efficiency motor technology.

The durable integrated water cooled synchronous motors are our newly developed products, featuring a highly compact design. They save space, are small in size, simplify equipment layout and installation, and reduce the complexity of wiring and piping connections.

Furthermore, these motors are easy to transport and install; their compact structure and light weight effectively reduce time and labor costs during installation.

Product Specification

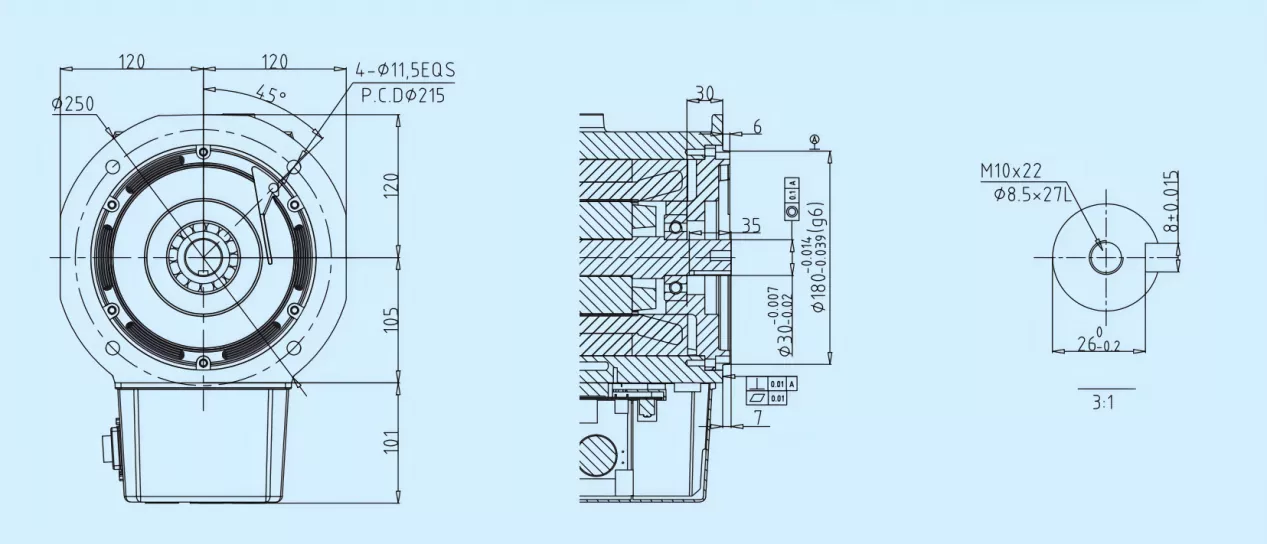

Mounting Size

Core Features

Space-Saving Integrated Design

The integrated water cooled synchronous motors combine the permanent magnet synchronous motor body, water cooling system,and variable frequency drive (VFD) into a single integrated unit.This compact structure is especially suitable for equipment with limited installation space.

Efficient Water Cooling for Stability

The integrated water cooling system uses low-temperature coolant to circulate around the motor stator, rotor, and VFD heat-generating components.It dissipates heat 3-5 times faster than air cooling, lowering the motor’s internal operating temperature by 40%-60% . This effectively suppresses copper loss, iron loss, and insulation aging caused by overheating, ensuring stable performance during long-term full-load.

High Power Density & Lightweight Advantage

The permanent magnet material enables the motor to generate stronger magnetic flux with a smaller rotor volume, resulting in 25%-40% higher power density than traditional induction motors. When paired with the integrated design, the motor’s weight is reduced by 30%-40% under the same power output—facilitating installation, reducing the load on equipment supports, and lowering transportation costs.

Strong Environmental Adaptability

The fully sealed housing (protection level up to IP67/IP68) prevents dust, moisture, oil mist, and corrosive gases from entering the internal components, making it suitable for harsh environments like coastal salt-spray areas, chemical workshops, or dusty mining sites.

Typical Application Scenarios

The integrated water cooled synchronous motors widely used across industries for its efficiency and adaptability:

Industrial Pumps & Fans

Compressors

Heavy-Duty Machinery

Precision Manufacturing Equipment

Renewable Energy & Power Generation

Chemical & Pharmaceutical Industries
