Permanent Magnet Variable Frequency Integrated Motor: The Plug-and-Play Revolution Solving the “Last Mile” of Energy Efficiency

Data shows that nearly two-thirds of industrial electricity consumption comes from motor-driven systems such as pumps, fans, and compressors. Although variable frequency drive (VFD) technology can reduce energy consumption by more than 25% on average, its adoption rate over the past 50 years has been far below expectations. The main challenge lies in the complexity of traditional separate motor-and-VFD systems. These solutions require professional installation and commissioning, dedicated control cabinets, separate electrical rooms, and extended production downtime during retrofitting, making them less attractive for many small and medium-sized enterprises as well as aging production lines.

Integrated Design: From “Assembled Components” to “Plug-and-Play”

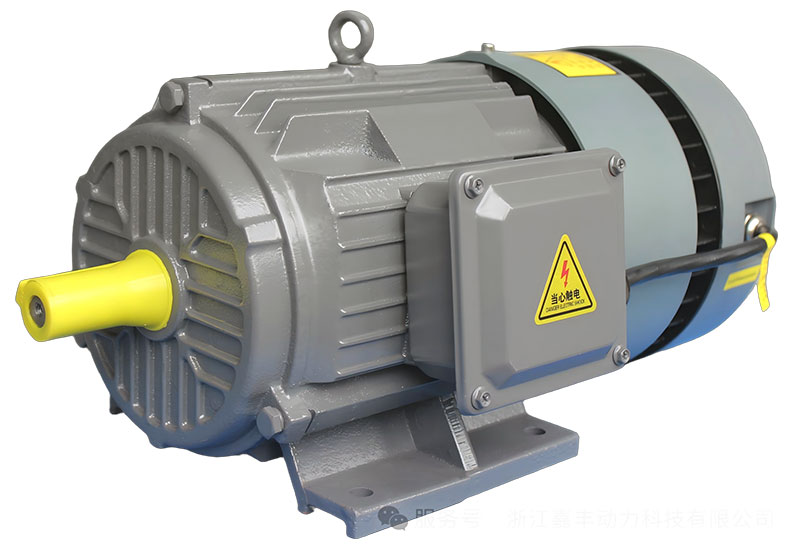

The emergence of Permanent Magnet Variable Frequency Integrated Motors has fundamentally changed this situation. As a technological breakthrough in the industry, these integrated systems combine an IE5 ultra-high-efficiency permanent magnet motor with a variable frequency drive into a single unit, eliminating many of the barriers associated with traditional solutions through a fully integrated design.

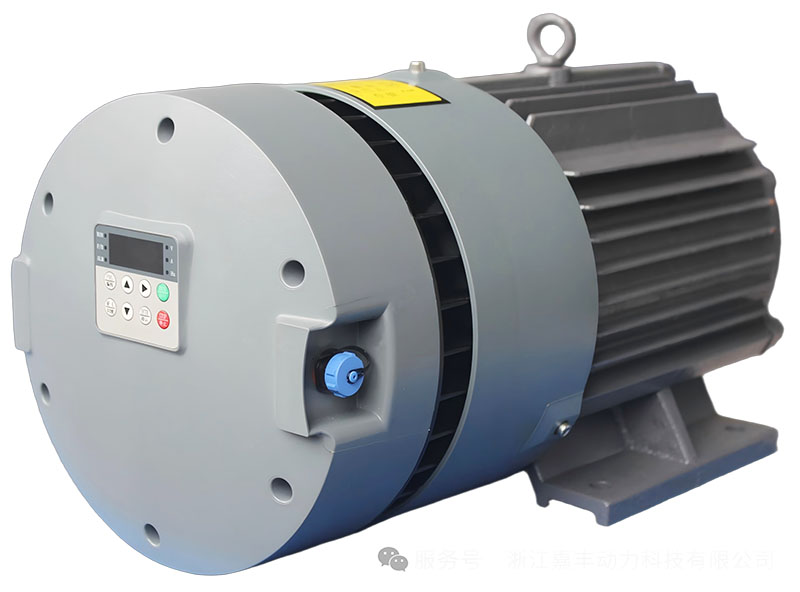

Their primary advantage lies in their simplicity. The compact axial integration design mounts the VFD module directly onto the motor end, eliminating the need for a separate control cabinet and significantly reducing installation space requirements. More importantly, the system offers true plug-and-play functionality. All motor and drive parameters are pre-configured and calibrated at the factory, requiring no on-site commissioning. In many cases, the integrated motor can even reuse the existing wiring of a fixed-speed motor. For users, this means that retrofit downtime can be reduced from several days to just a few hours, minimizing disruption to production operations.

Superior Energy Efficiency and Lower Total Cost of Ownership

In terms of performance, these products achieve the IE5 ultra-high-efficiency level, representing the highest internationally recognized efficiency standard. Compared with the widely used IE3 efficiency motors, energy losses can be reduced by more than 40%.

From a total cost of ownership perspective, the initial purchase cost of a motor typically accounts for only about 2% of its lifetime cost, while approximately 97% is associated with long-term electricity consumption. As a result, the energy savings generated by replacing conventional motors with Permanent Magnet Variable Frequency Integrated Motors can often recover the initial investment within a relatively short period.

For example, in a typical 7.5 kW centrifugal pump application, a single unit can save more than RMB 12,000 in electricity costs annually while reducing carbon emissions by approximately 14 tons per year.

In addition, to meet the demands of harsh industrial environments, these integrated motors are commonly designed with high-strength cast iron housings and high protection ratings (IP55 or above). They can operate reliably in high-humidity, high-dust conditions and withstand ambient temperatures ranging from -20°C to +40°C. Their robust construction ensures stable performance even under heavy-duty operating conditions.

Selection Guidelines and Future Trends

Despite their significant advantages, Permanent Magnet Variable Frequency Integrated Motors are not suitable for every application. Proper selection should be based on specific operating requirements.

Recommended Applications

These motors are particularly effective for equipment with fluctuating loads and frequent speed adjustment requirements, including:

In such applications, variable frequency operation typically delivers energy savings of 20% to 30% or more.

Applications Suitable for Traditional Motors

Conventional motors may still be the preferred choice for:

Conclusion

By combining deep integration with simplified installation, Permanent Magnet Variable Frequency Integrated Motors are driving a global energy-efficiency retrofit revolution in existing industrial facilities. They make advanced variable frequency technology as easy to use as a conventional motor, helping businesses reduce operating costs, improve efficiency, and support the global transition toward greener and more sustainable industrial development.
