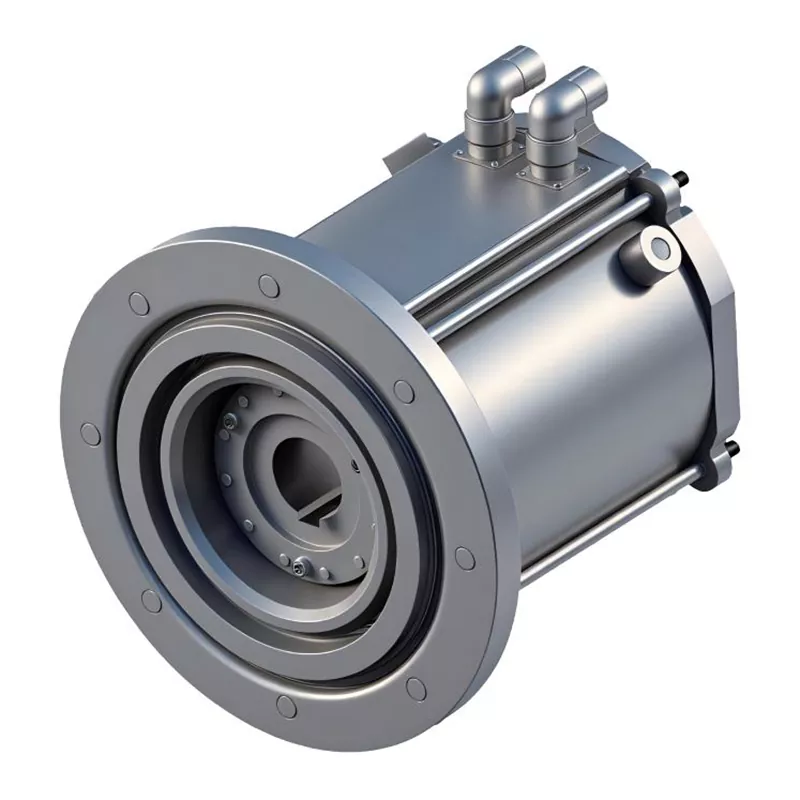

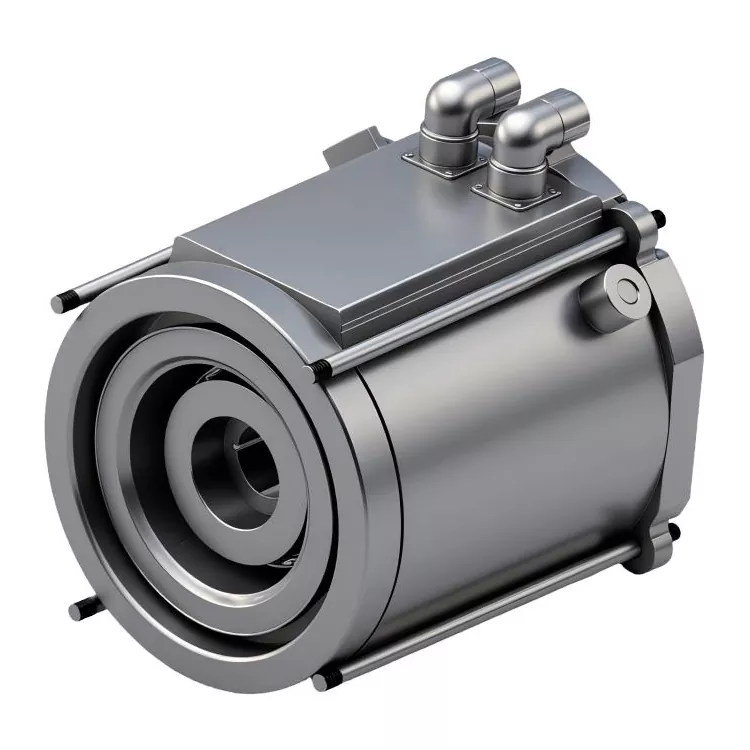

The durable Cantilever Water Cooled Synchronous Motor is an efficient motor built for a wide range of industrial uses. It brings the benefits of a cantilever design with an effective water cooling system, resulting in high efficiency, reliable operation, and superior heat dissipation. This motor is also customizable. We can make the motor to customer's specifications, ensuring it fits the demands of your specific application. Our goal is to provide you with top quality products and dedicated service.
|
No. |
Power |
Voltage |
Frequency |
Poles |
Speed(rpm) |
Current |
Efficiency |
Power Factor |
Insulation Class |
DutyType |
Connection |
Protection level |
Motor Frame |
|
1 |
4KW |
380V |
150-300Hz |
6 |
3000-6000 |
7.2A |
91.7% |
0.92 |
F |
S1 |
Y |
IP68 |
112 |
|
2 |
4.5KW |
380V |
150-300Hz |
6 |
3000-6000 |
7.95A |
92.55% |
0.925 |
F |
S1 |
Y |
IP68 |
112 |
|
3 |
6KW |
380V |
150-300Hz |
6 |
3000-6000 |
10.7A |
93.1% |
0.935 |
F |
S1 |
Y |
IP68 |
132 |
|
4 |
7.5KW |
380V |
150-300Hz |
6 |
3000-6000 |
12.9A |
93.6% |
0.95 |
F |
S1 |
Y |
IP68 |
132 |
|
5 |
11KW |
380V |
150-300Hz |
6 |
3000-6000 |
18.6A |
94.5% |
0.96 |
F |
S1 |
Y |
IP68 |
160 |
|

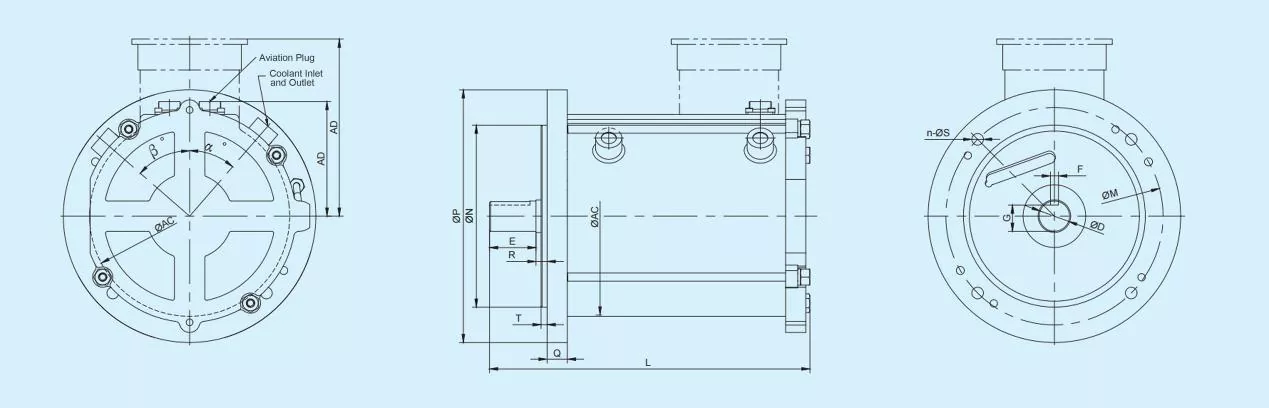

Motor Frame No. |
Power |
Dimension(mm) |
|||||||||||||||
|
D |
E |
F |
G |
M |
N |
T |
P |
R |
S |
n |
Q |
Y |
AC |
AD |
L |
||
|
112 |
4-4.5KW |
28 |
60 |
8 |
24 |
215 |
180 |
4 |
250 |
0 |
15 |
4 |
15 |
PT3/8 |
198 |
146 |
291 |
|
132 |
6-7.5KW |
38 |
80 |
10 |
33 |
265 |
230 |
4 |
300 |
0 |
15 |
4 |
15 |
PT3/8 |
198 |
146 |
291 |
|
160 |
11KW |
42 |
110 |
12 |
37 |
300 |
250 |
5 |
350 |
0 |
19 |
4 |
20 |
PT3/8 |
198 |
146 |
366 |
Full Sealed Enclosure (IP68 Protection Level): The Cantilever Water Cooled Synchronous Motor is fully sealed, making it ideal for integration into systems like vacuum pumps and compressors.
Cantilever Design: The motor features a cantilever structure, which means the rotor is supported at one end only. This special design is easy for maintenance and inspect the rotor, as well as installation.
Water Cooling System: It use water cooling system. The cooling water circulates through the cooling jackets, efficiently dissipating the heat generated during operation. This ensures the motor operates at an good temperature, enhancing its performance and extending its service life.
|
Parameter |
Specification |
|
Power Range |
|
|
Voltage |
380V (Other voltages available based on custom requirements) |
|
Speed |
3000 RPM to 6000RPM, or as required (Synchronous speed) |
|
Insulation Class |
F (Standard) |
|
Protection Class |
|
|
Cooling Water Flow |
|
|
Efficiency Level |
IE4 / IE5 (China Grade 1 Standard) |
Vacuum pumps: Its sealed pump chamber design is crucial for semiconductor manufacturing and industrial processes.
Air compressors: Improves the efficiency and reliability of screw compressors.
Centrifugal fans: Provides stable and efficient airflow for HVAC and industrial systems.
High-end industrial machinery: Suitable for applications requiring precise speed control, high efficiency, and a compact, reliable design.
