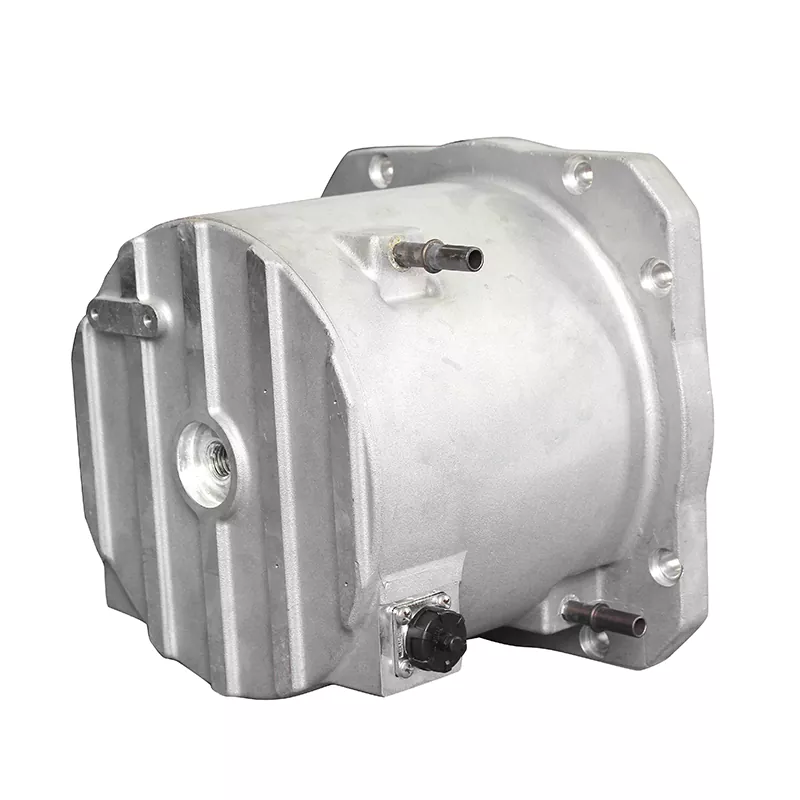

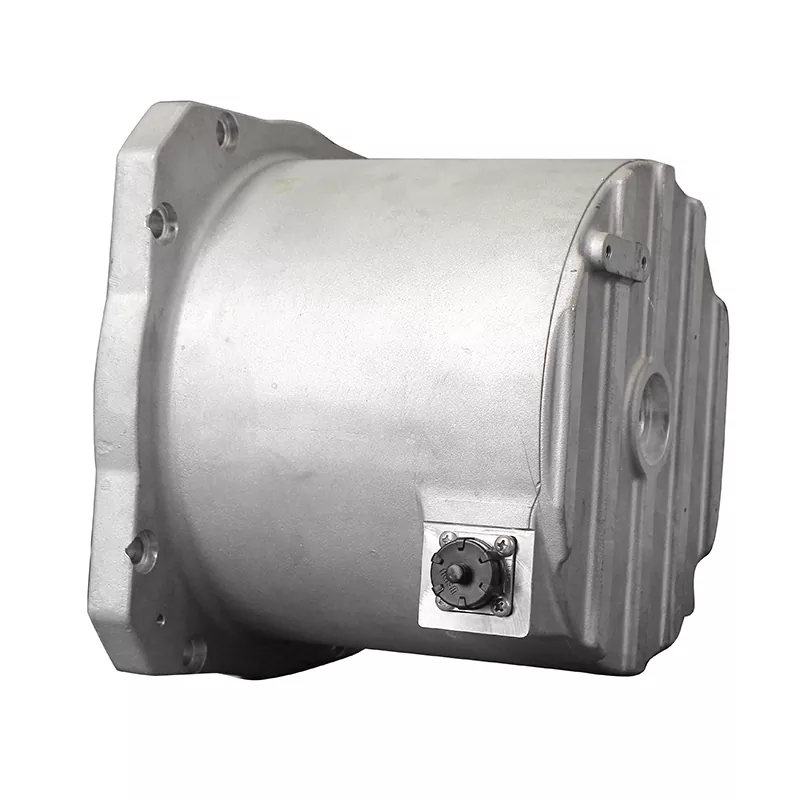

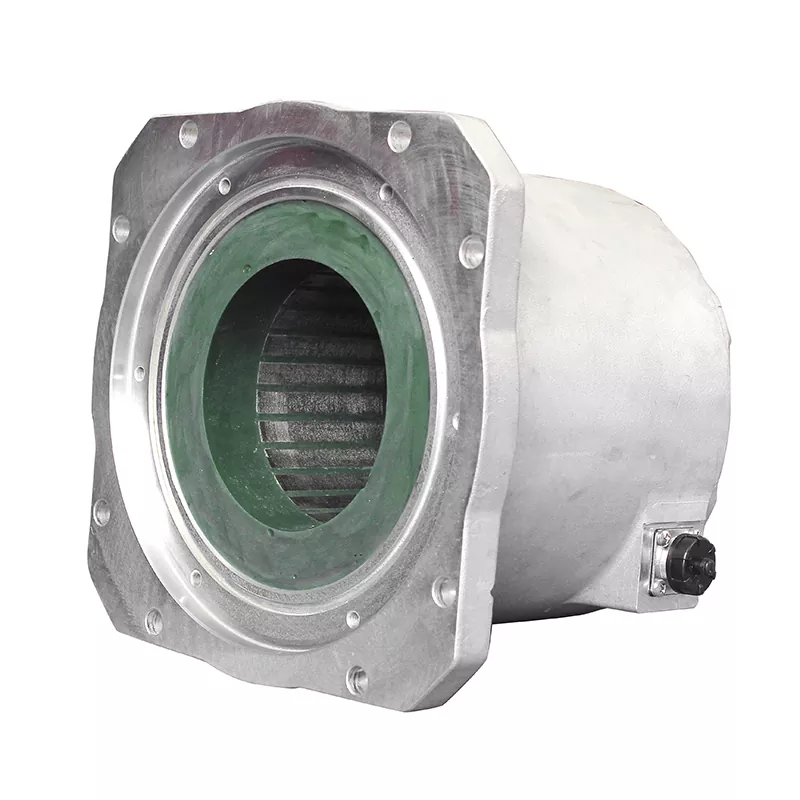

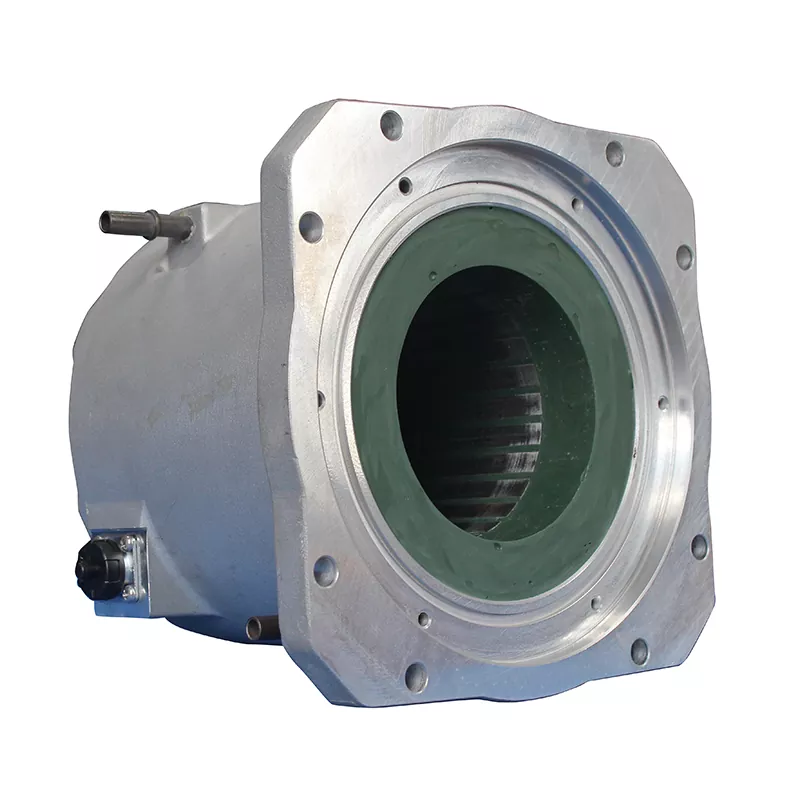

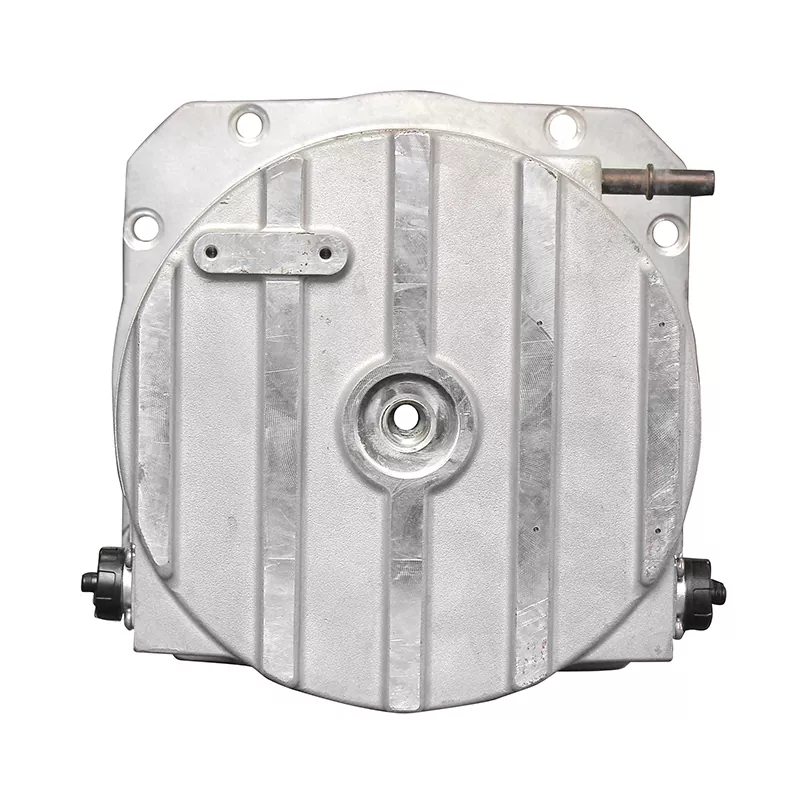

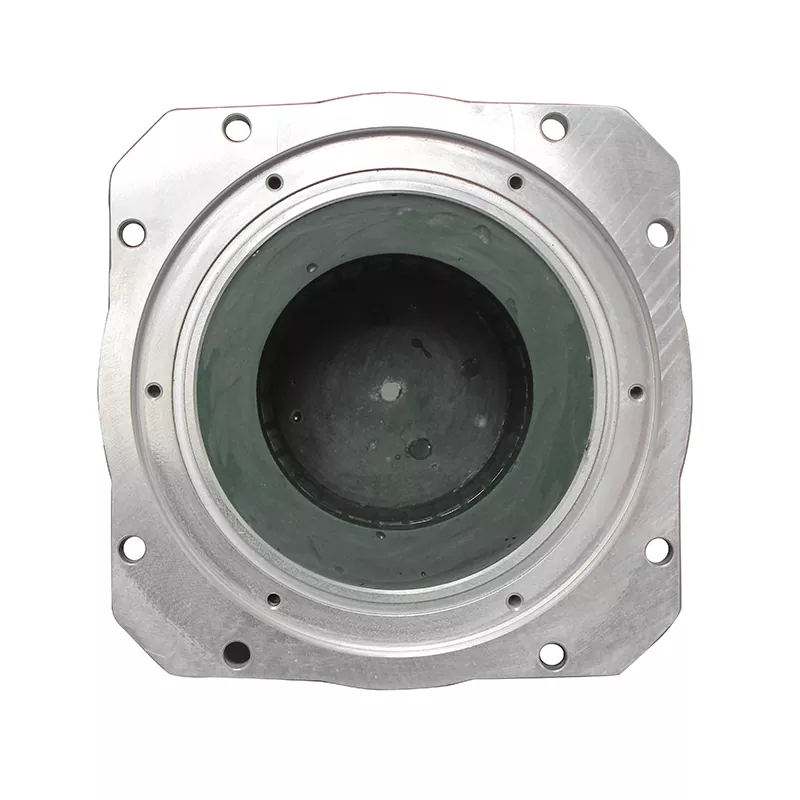

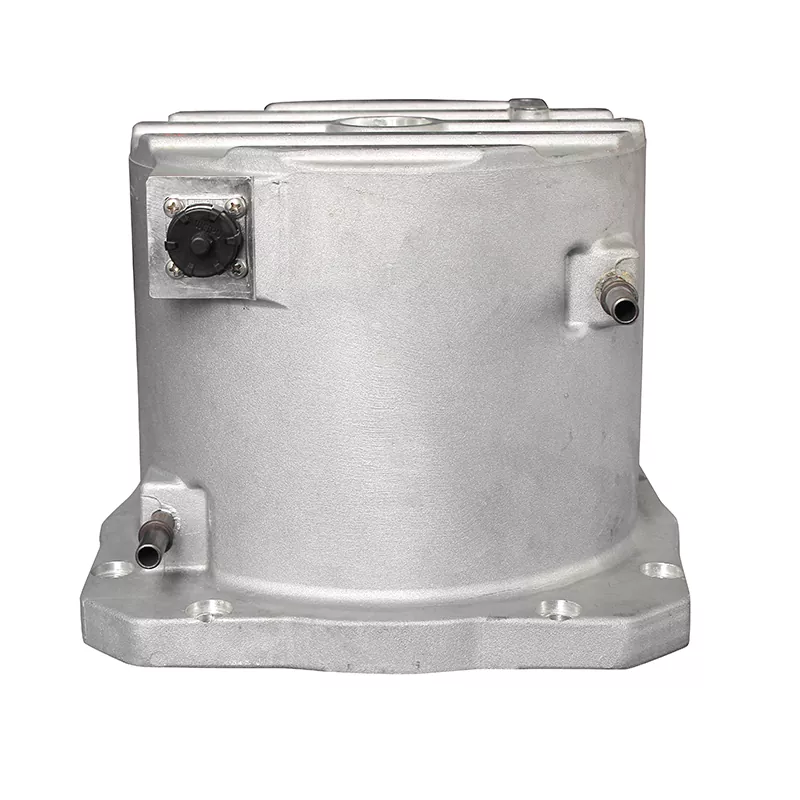

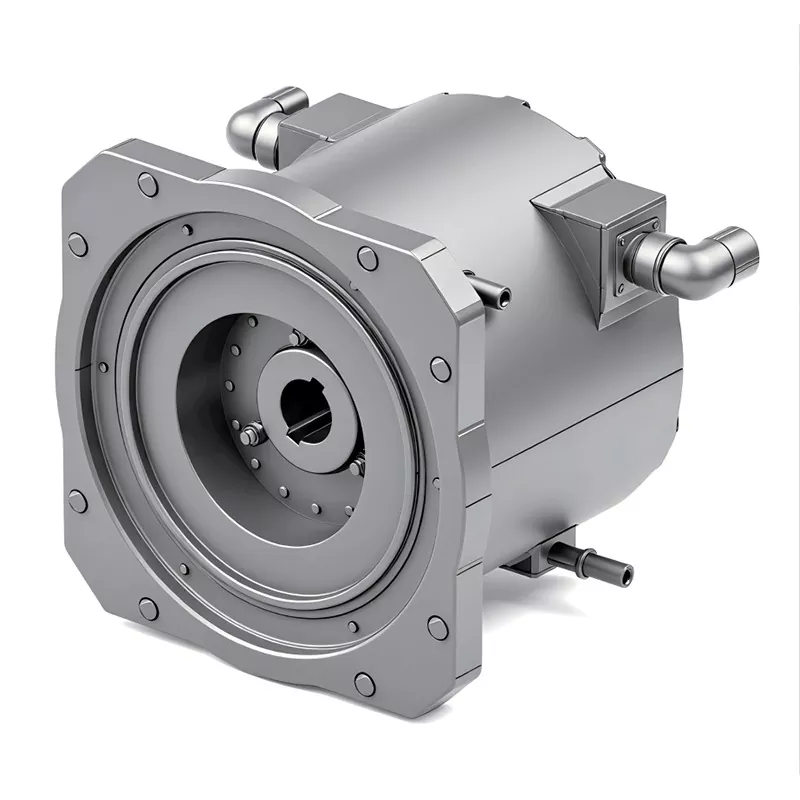

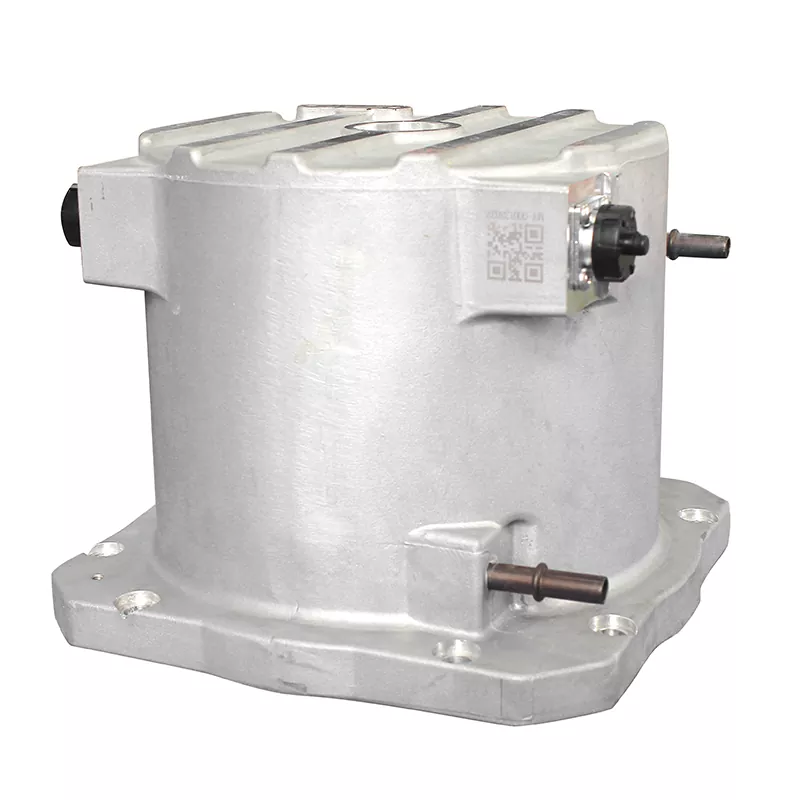

Jiafeng Power’s IE5 Cantilever Water Cooled Permanent Magnet Motor stands out in the industrial motor market with its innovative cantilever structure and advanced thermal design. Compared with standard air-cooled motors, the efficient water-cooling system effectively controls temperature, reducing overheating risks and preventing unplanned downtime. As a reliable motor supplier and factory, Jiafeng Power delivers this solution with consistent quality, ensuring stable performance and high efficiency for demanding industrial applications.
|
No. |
Power |
Voltage |
Frequency |
Poles |
Speed (rpm) |
Current |
Efficiency |
Power Factor |
Insulation Class |
Duty Type |
Connection |
Protection level |
|
1 |
4.5KW |
380V |
150-300Hz |
6 |
3000-6000 |
5.6A |
91.2% |
0.922 |
F |
S1 |
▲ |
IP68 |
|
2 |
7.5KW |
380V |
150-300Hz |
6 |
3000-6000 |
13A |
95.1% |
0.98 |
F |
S1 |
▲ |
IP68 |
|
Feature |
Benefit |
|
IE5 Efficiency |
Drastic reduction in energy consumption, lower operating costs |
|
Cantilever Design |
Simplified direct drive integration, high rigidity, reduced maintenance |
|
Permanent Magnet Rotor |
High power density, high torque, zero rotor excitation losses |
|
Water-Cooling System |
Compact size, high power density, superior thermal management |
|
Long Life (100,000+ hrs) |
Reduced downtime, lower total cost of ownership |
|
Sealed Customized Units (IP68) |
Ideal for harsh environments, easy integration into vacuum systems |
Jiafeng Power's durable IE5 Cantilever Water Cooled Permanent Magnet Motor is designed for tough environment, continues working conditions,where reliability, efficiency, and a small footprint matter most required. Its uses are widely below area:
Vacuum Pumps: Its sealed, direct drive setup is perfectly suited for creating and sustaining vacuum conditions.
Industrial Compression: The motor's high efficiency and reliability benefit air and gas compressors in manufacturing, processing, and mining.
Pumping Systems: Its robust performance and energy savings are ideal for high-capacity water supply, wastewater handling, and industrial process pumps.
Centrifugal Fans: It's a trusted choice for HVAC systems, power plant draft fans, and various industrial ventilation needs.
