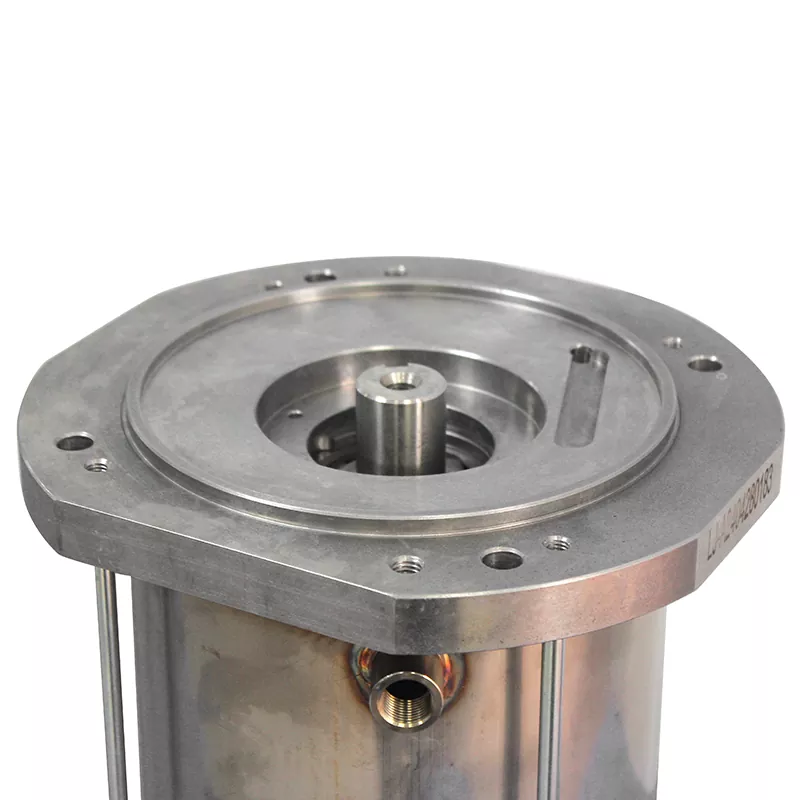

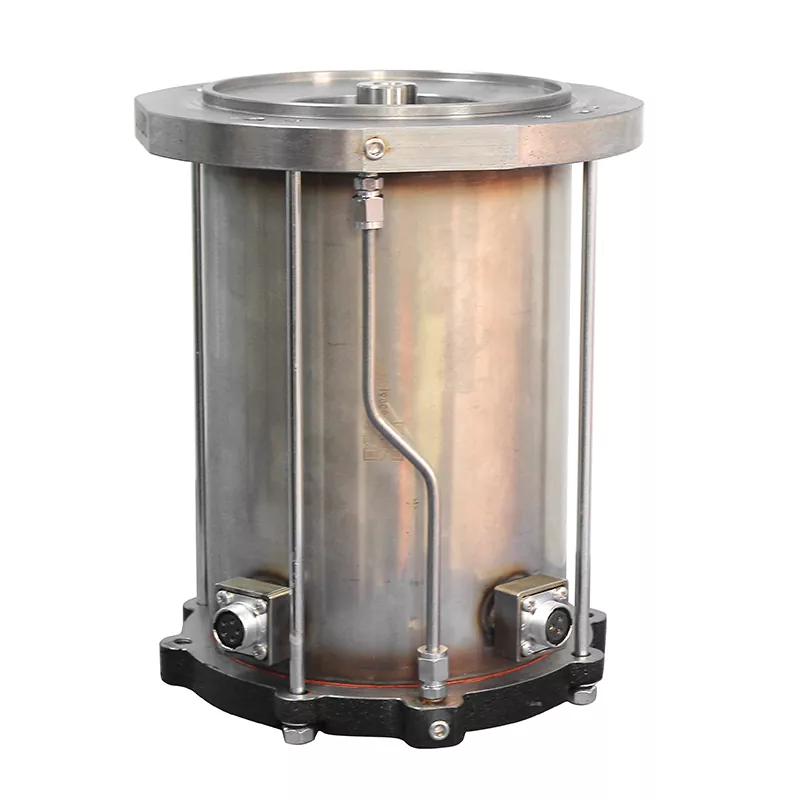

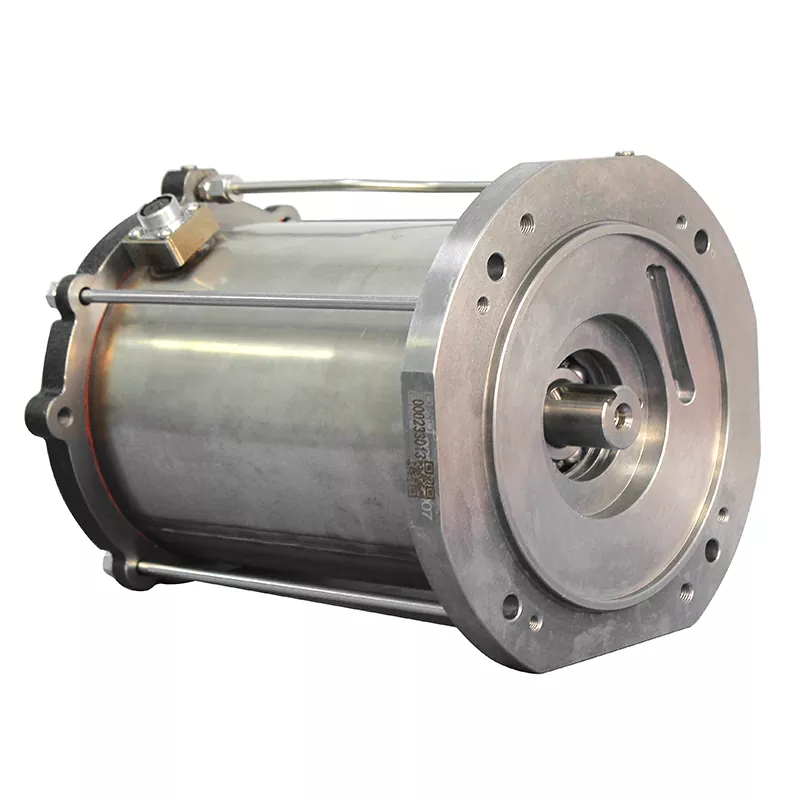

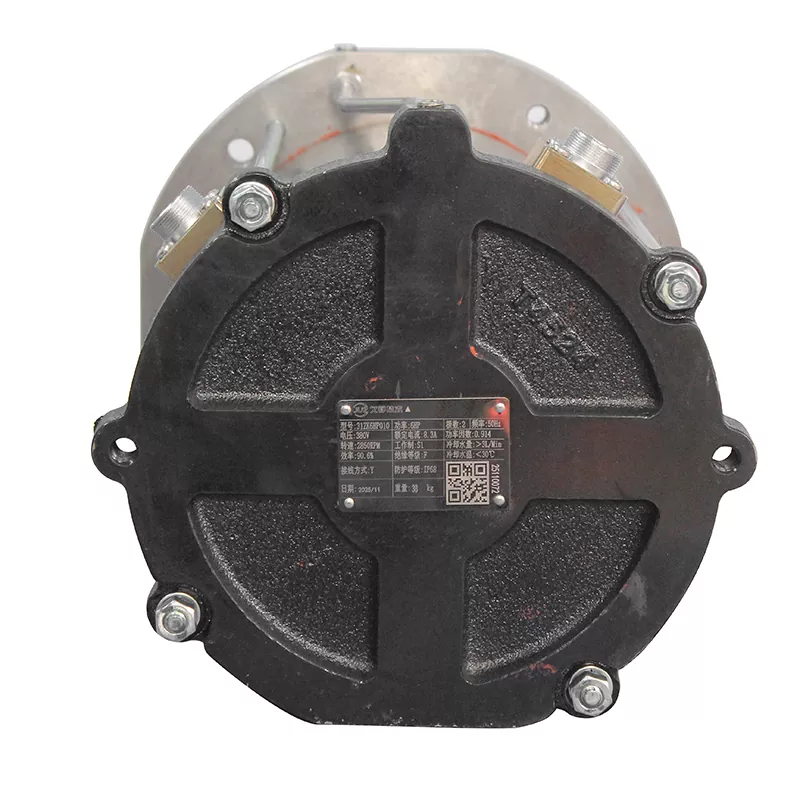

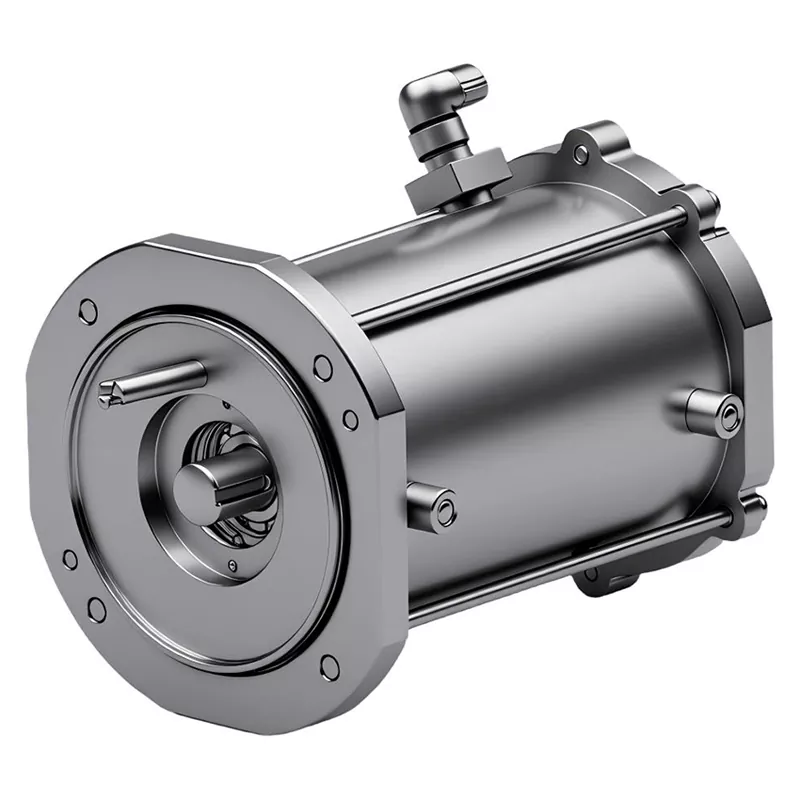

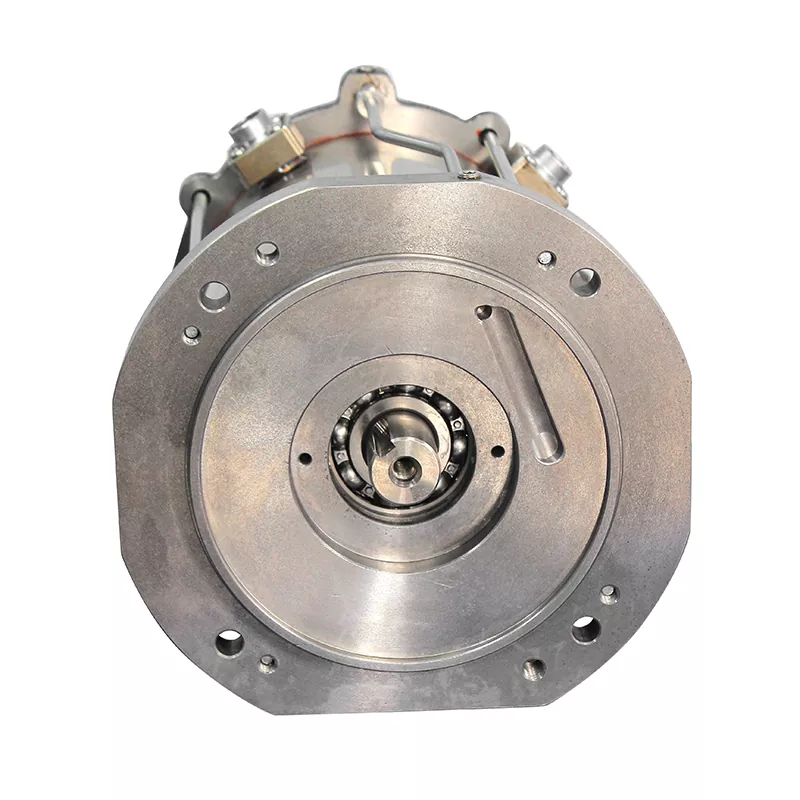

The Stainless Steel Water Cooled Synchronous Motor from Jiafeng Power, a trusted motor supplier and factory, features advanced permanent magnet materials and an optimized motor design to deliver significantly improved efficiency. Compared with traditional motors, it reduces energy consumption and operational waste, aligning with global green and sustainable development goals. This durable, high-quality motor helps enterprises lower operating costs while supporting environmentally responsible operations.
|
No. |
Power |
Voltage |
Frequency |
Poles |
Speed(rpm) |
Current |
Efficiency |
Power Factor |
Insulation Class |
DutyType |
Connection |
Protection level |
Motor Frame |
|
1 |
4KW |
380V |
150-300Hz |
6 |
3000-6000 |
7.2A |
91.7% |
0.92 |
F |
S1 |
Y |
IP68 |
112 |
|
2 |
4.5KW |
380V |
150-300Hz |
6 |
3000-6000 |
7.95A |
92.55% |
0.925 |
F |
S1 |
Y |
IP68 |
112 |
|
3 |
6KW |
380V |
150-300Hz |
6 |
3000-6000 |
10.7A |
93.1% |
0.935 |
F |
S1 |
Y |
IP68 |
132 |
|
4 |
7.5KW |
380V |
150-300Hz |
6 |
3000-6000 |
12.9A |
93.6% |
0.95 |
F |
S1 |
Y |
IP68 |
132 |
|
5 |
11KW |
380V |
150-300Hz |
6 |
3000-6000 |
18.6A |
94.5% |
0.96 |
F |
S1 |
Y |
IP68 |
160 |
|

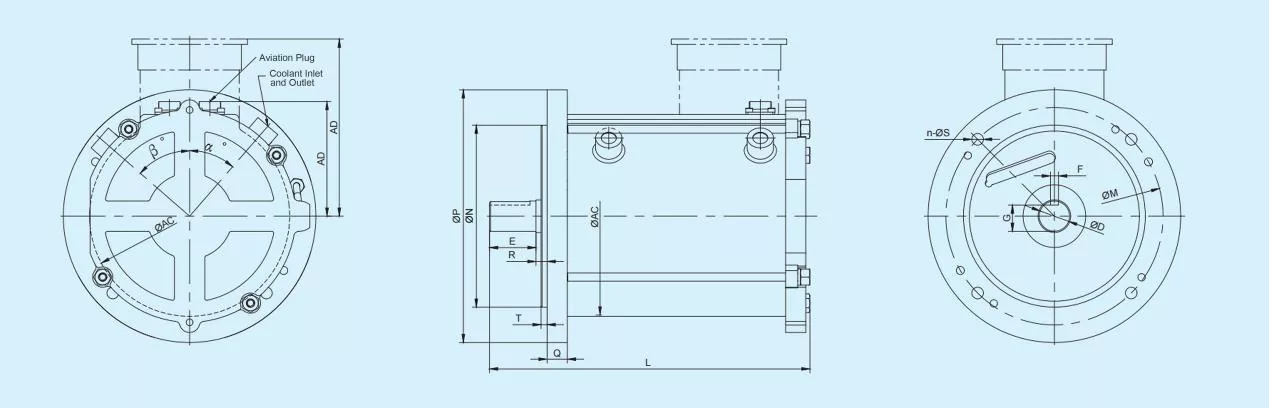

Motor Frame No. |
Power |
Dimension(mm) |
|||||||||||||||
|
D |
E |
F |
G |
M |
N |
T |
P |
R |
S |
n |
Q |
Y |
AC |
AD |
L |
||
|
112 |
4-4.5KW |
28 |
60 |
8 |
24 |
215 |
180 |
4 |
250 |
0 |
15 |
4 |
15 |
PT3/8 |
198 |
146 |
291 |
|
132 |
6-7.5KW |
38 |
80 |
10 |
33 |
265 |
230 |
4 |
300 |
0 |
15 |
4 |
15 |
PT3/8 |
198 |
146 |
291 |
|
160 |
11KW |
42 |
110 |
12 |
37 |
300 |
250 |
5 |
350 |
0 |
19 |
4 |
20 |
PT3/8 |
198 |
146 |
366 |
• High Efficiency: This Stainless Steel Water Cooled Synchronous Motor is around 10% more efficient than normal motors. It cuts down a lot of energy usage and helps customers save quite a bit on operating costs.
• High Power Density: In the same size, this quality Motor can output more power than normal motor. That makes it a good fit for equipment where space is really limited.

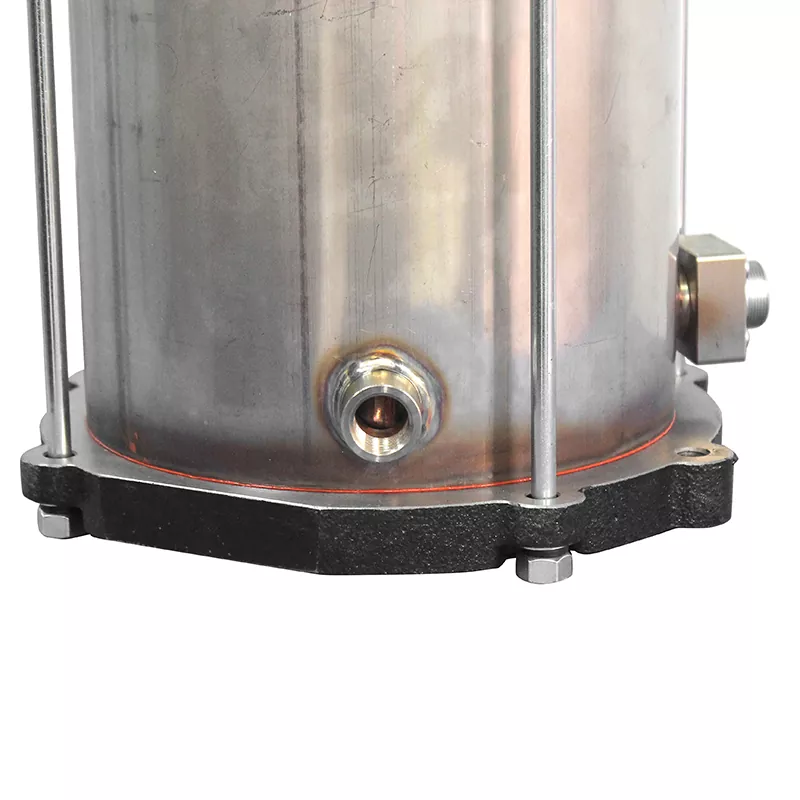

• High Reliability: Due to the stainless steel shell and water cooling system, this motor runs steadily even in terrible environments. It also has longer life because of that.
• Low Noise: The water cooling system works well to lower the noise the motor makes when it’s running. That means users get a quieter working space.
• Eco-Friendly and Energy-Saving: This motor meets the country’s energy-saving and emission-reduction rules. It helps businesses do production in a greener way.
This Stainless Steel Water Cooled Synchronous Motor is used widely in fields like semiconductors, photovoltaics, automation control, aerospace, artificial intelligence, and new energy transportation.
